Recoil RED1800.5 1800W 5-Channel Class-D Car Amplifier – Mono 1 Ohm Stable
The Recoil RED1800.5 is a high-performance 5-channel Class-D car audio amplifier delivering an impressive 1800 Watts RMS of continuous power. Designed to power multiple full-range speakers and a subwoofer, this amplifier offers versatile audio tuning and superior sound quality for any car audio system.
Key Features
- 5-Channel Class-D amplifier with mono 1Ω stable subwoofer output

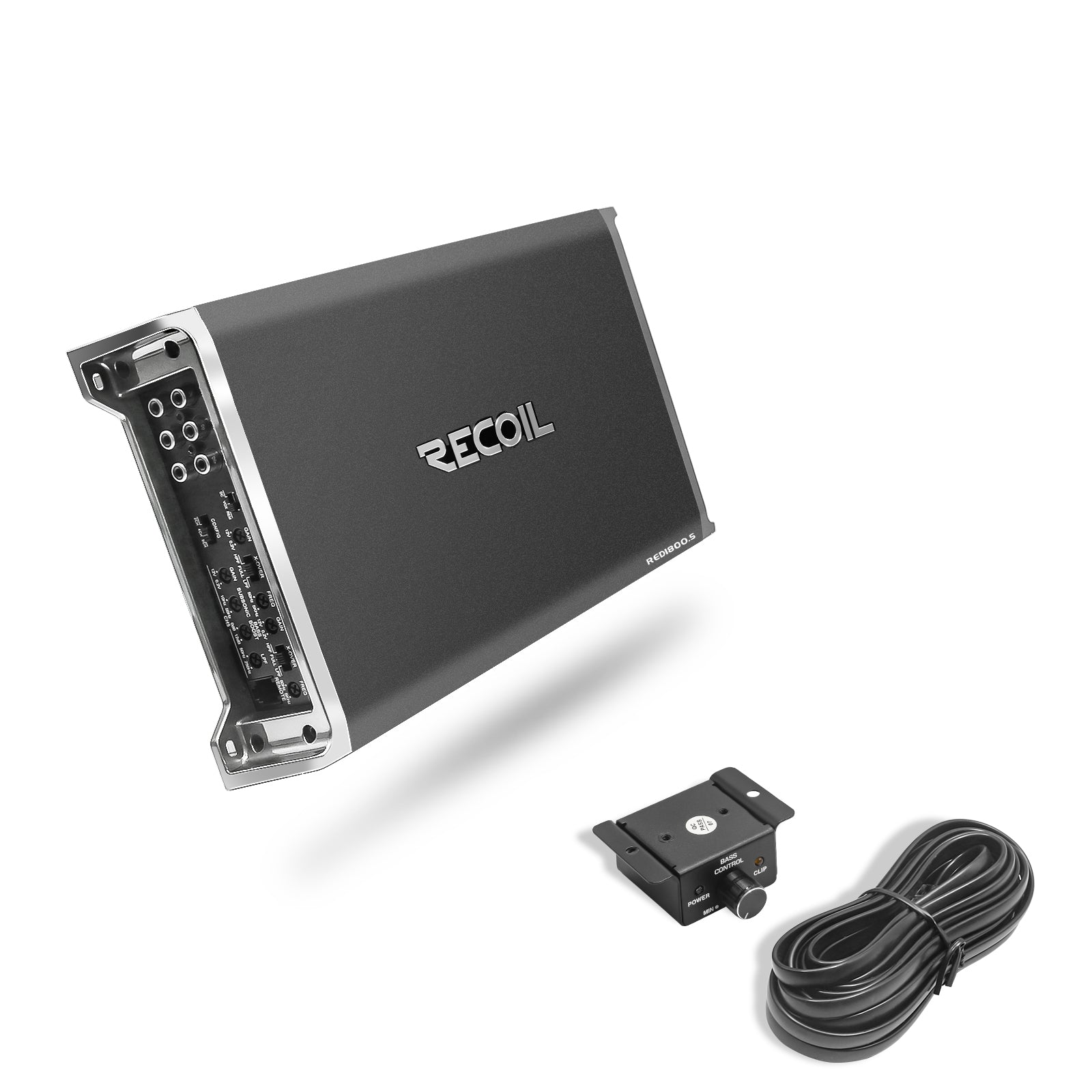

- Includes remote bass knob and cable for on-dash bass control
- High-pass filters to optimize full-range speaker performance
- Adjustable low-pass filter and bass boost for subwoofer channel

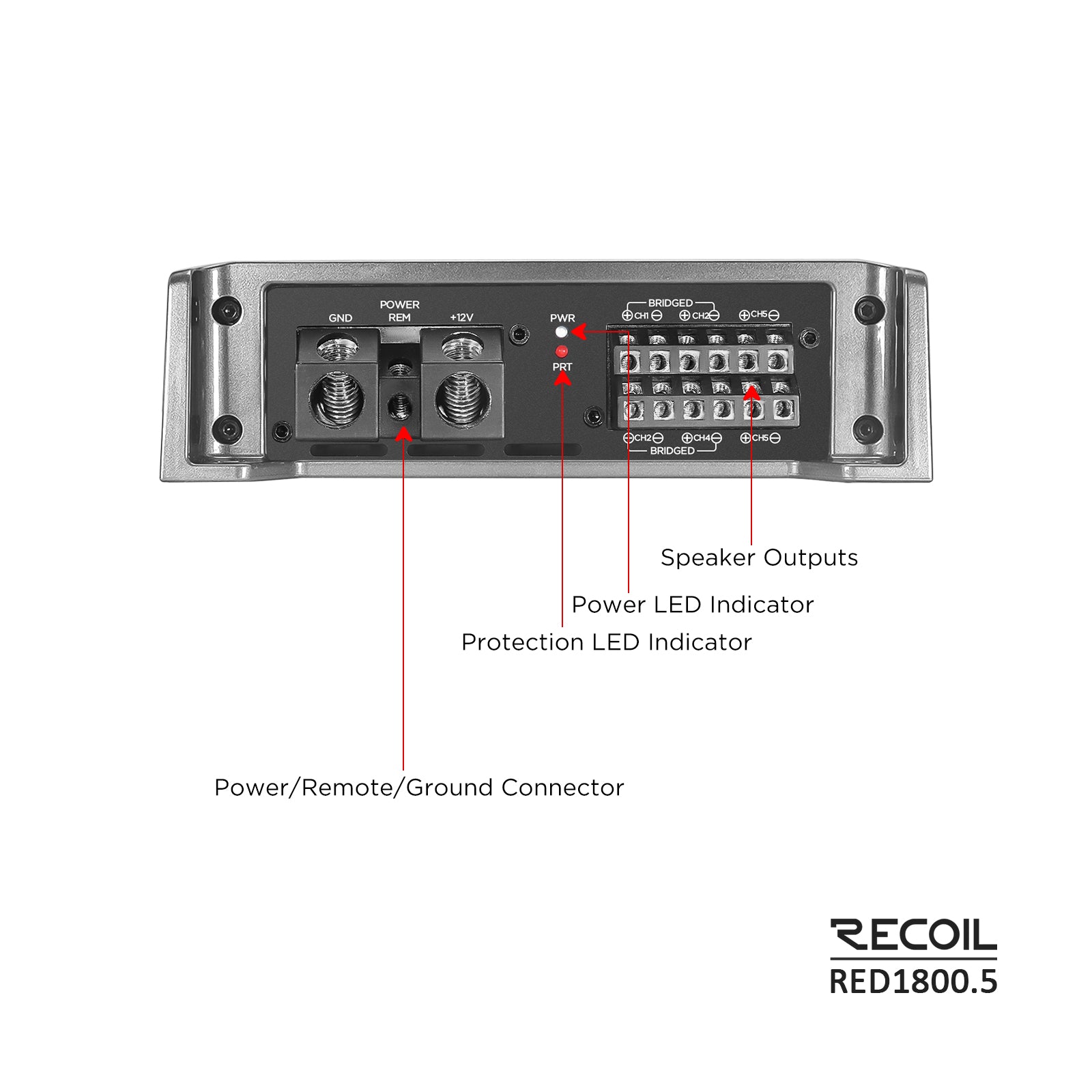

- Oversized 1/0 gauge power and ground terminals for maximum current flow
- 4-way protection circuitry: thermal, voltage, speaker, DC short protection
- Soft turn-on circuit and high-speed MOSFET power supply
Technical Specifications
- RMS Power @ 2Ω: 220W x 4 + 980W x 1
- RMS Power @ 4Ω: 140W x 4 + 600W x 1
- RMS Power @ 1Ω (CH5): 1,280W x 1
- Frequency Response: 10Hz–25kHz (CH1-4), 10Hz–300Hz (CH5)
- Signal-to-Noise Ratio: 89dB (CH1-4), 94dB (CH5)
- Bass Boost: 0–12dB (CH5)
- Low Pass Filter: 40Hz–260Hz (variable)
- Subsonic Filter: 12Hz–55Hz
- Fuse Rating: 200 Amp

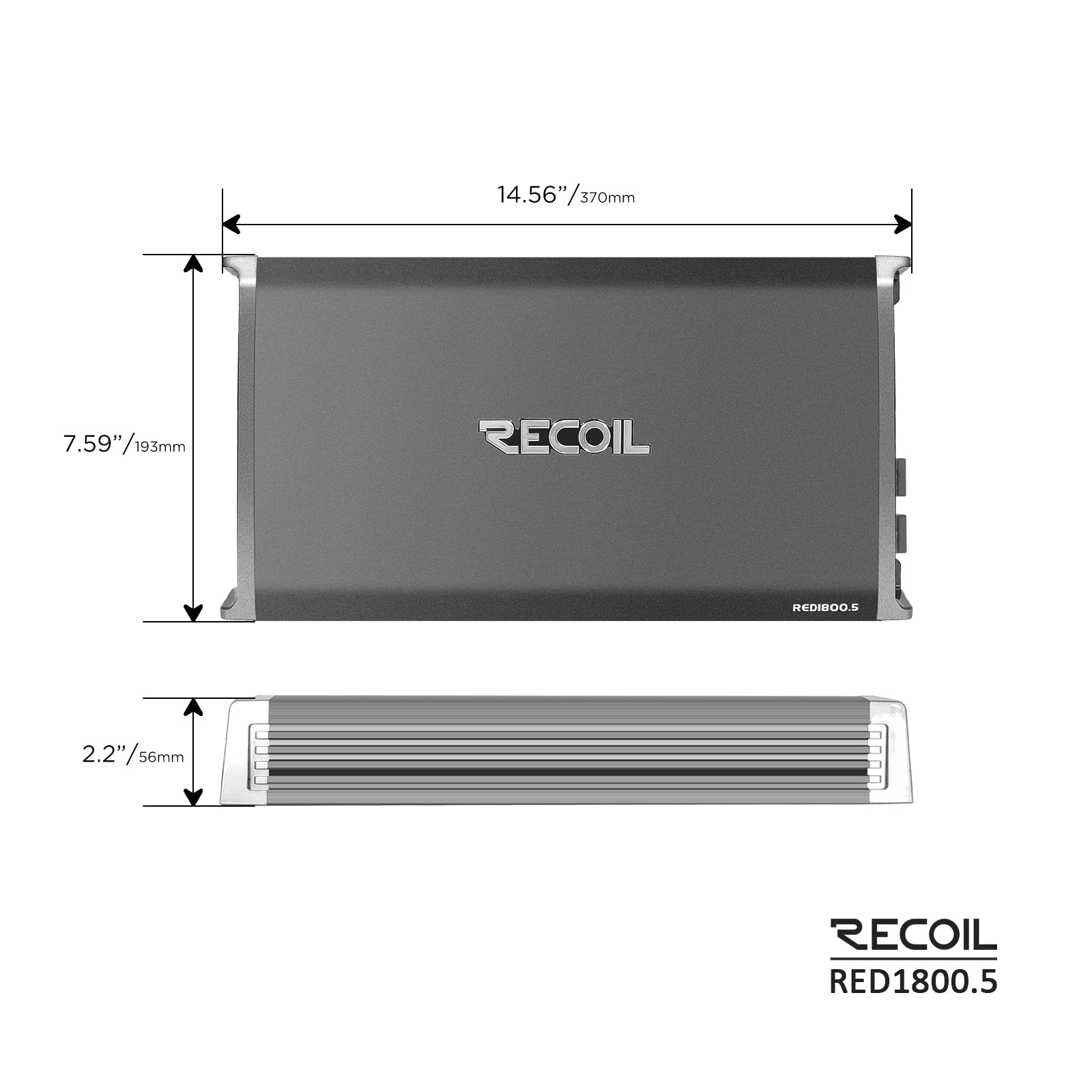

- Dimensions: 14.6" x 7.6" x 2.2" (370mm x 193mm x 56mm)
With robust protection features, high-current terminals, and customizable tone controls, the Recoil RED1800.5 provides clean, powerful sound with ultimate reliability for serious car audio enthusiasts.
