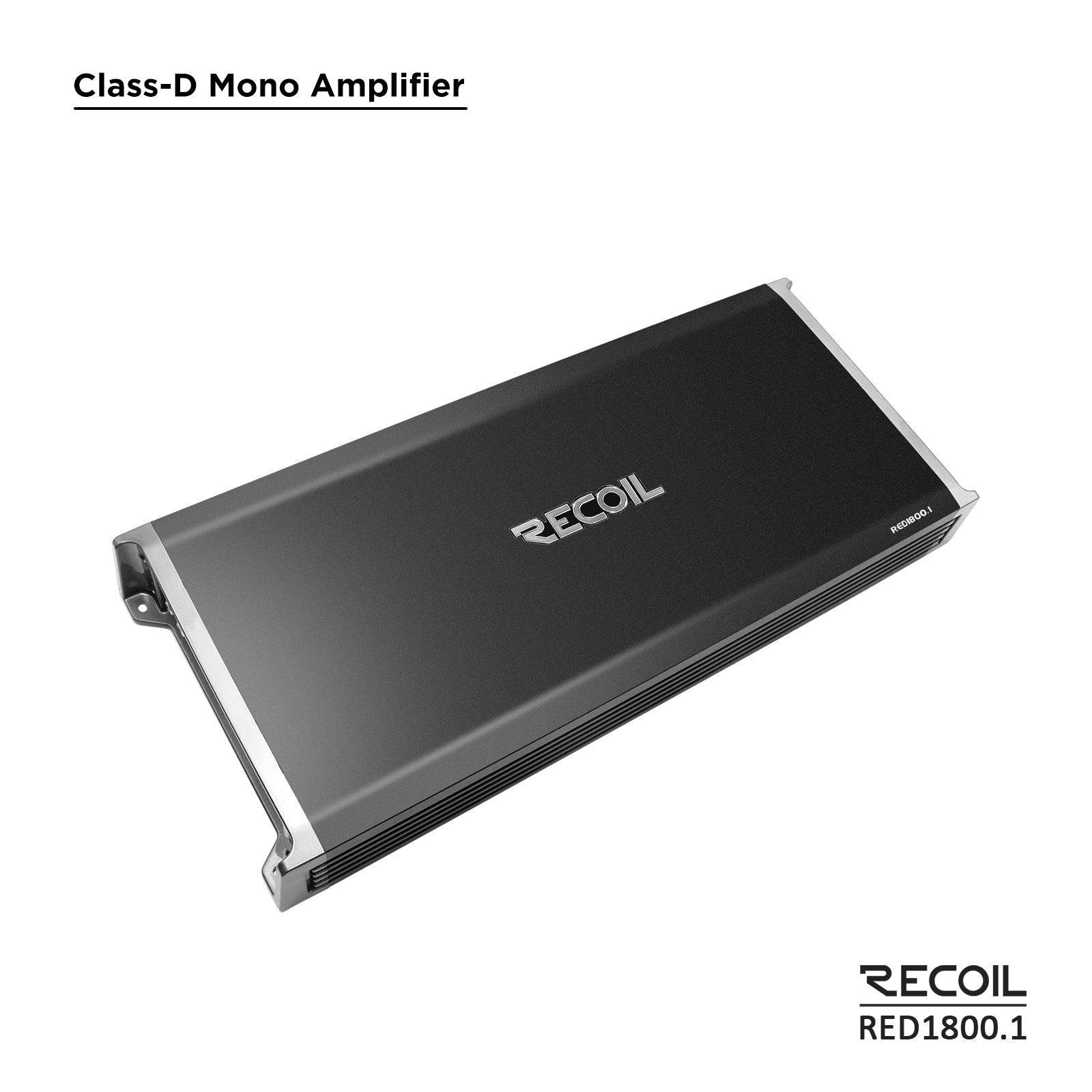

Recoil RED1800.1 3600W Class-D Mono-Block Subwoofer Amplifier – 1Ω Stable
The Recoil RED1800.1 is a high-performance Class-D mono-block subwoofer amplifier engineered for maximum power and reliability. Rated at 1800 Watts RMS at 1Ω, this amplifier is 1-ohm stable and strappable, allowing two units to deliver an incredible 3600 Watts RMS at 2Ω when linked.
Key Features
- Class-D mono-block subwoofer amplifier

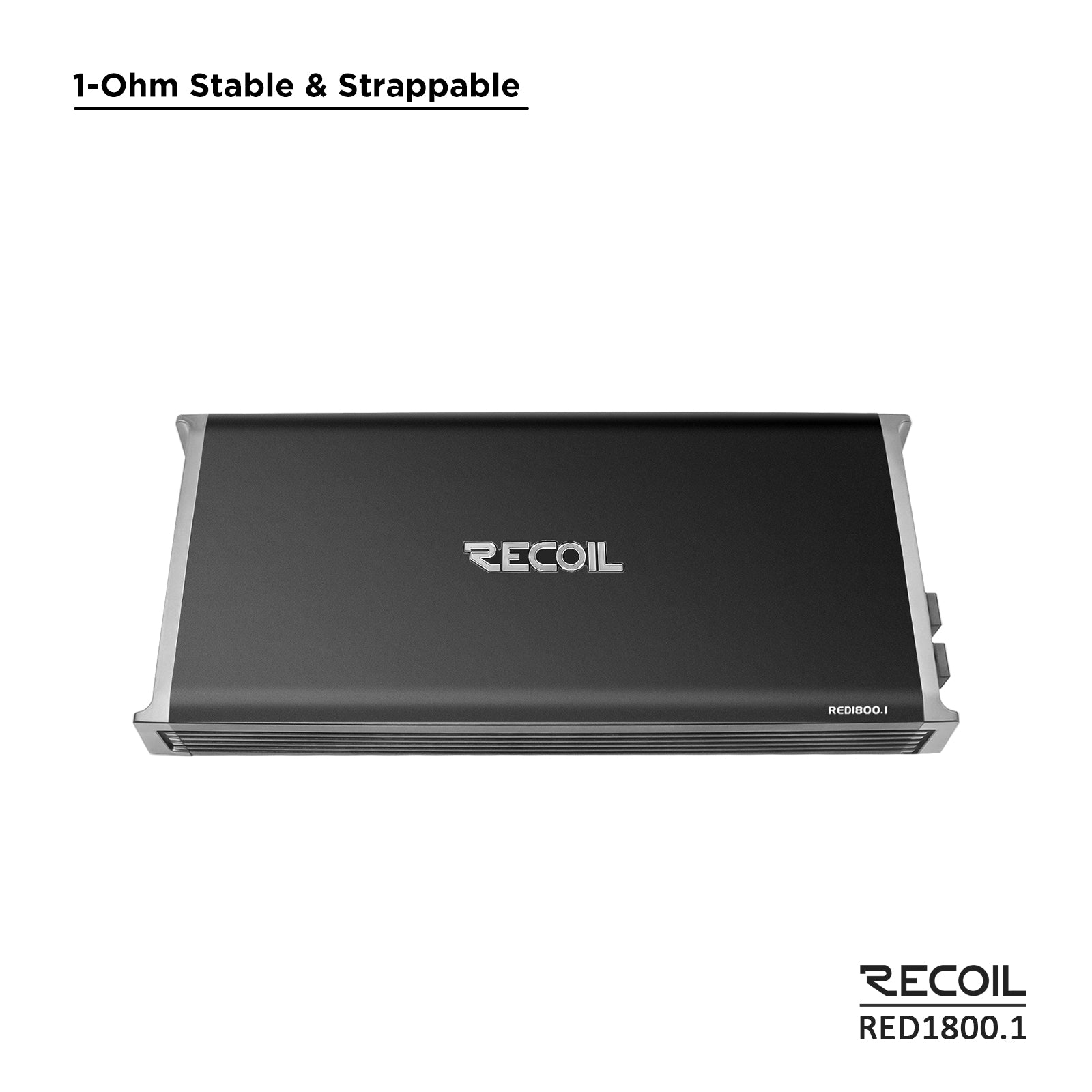

- 1Ω stable, strappable for double power output

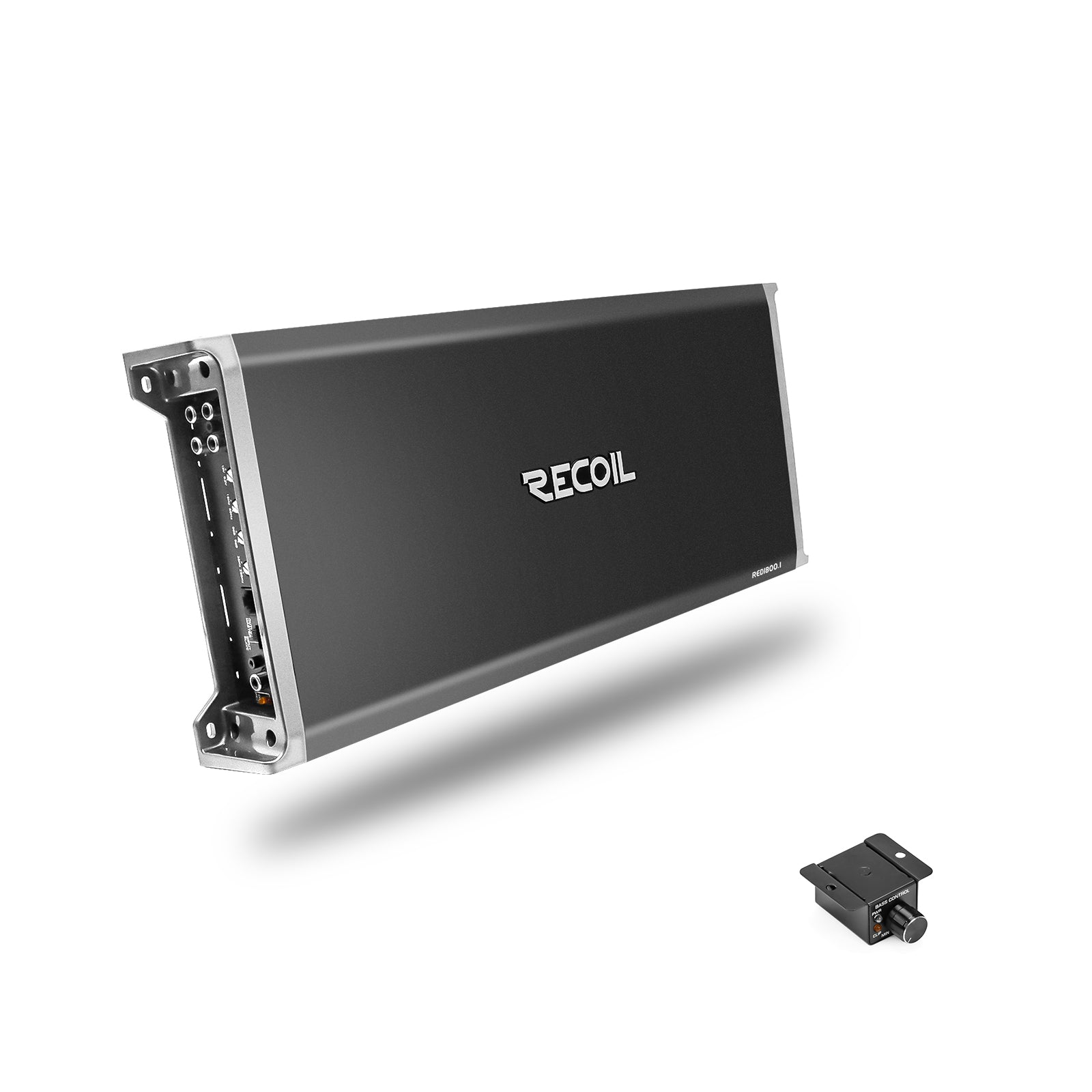

- Remote bass knob included for on-dash control
- High-speed MOSFET power supply for clean, efficient power delivery

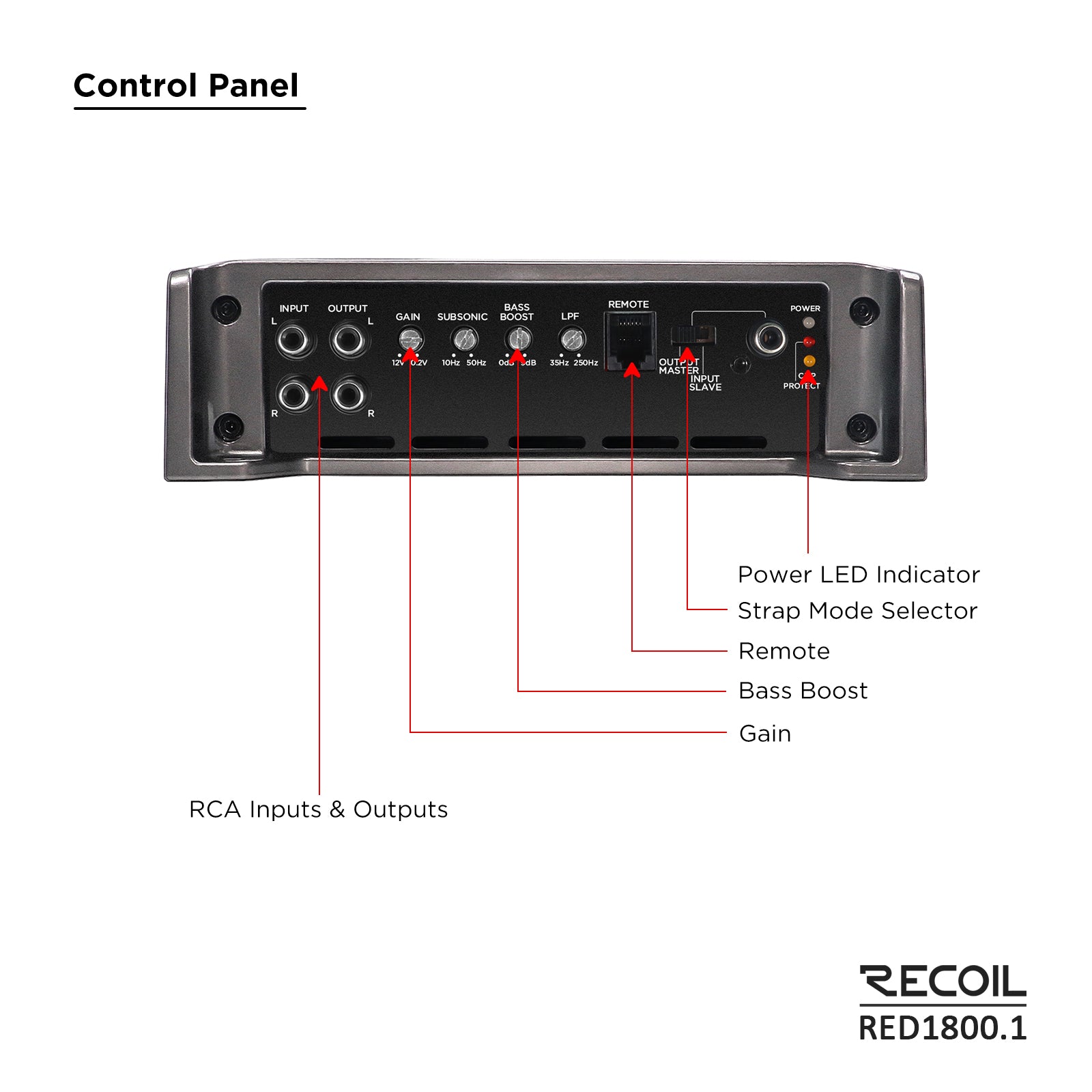

- User control panel with gain, bass EQ, low-pass, and subsonic filter adjustments

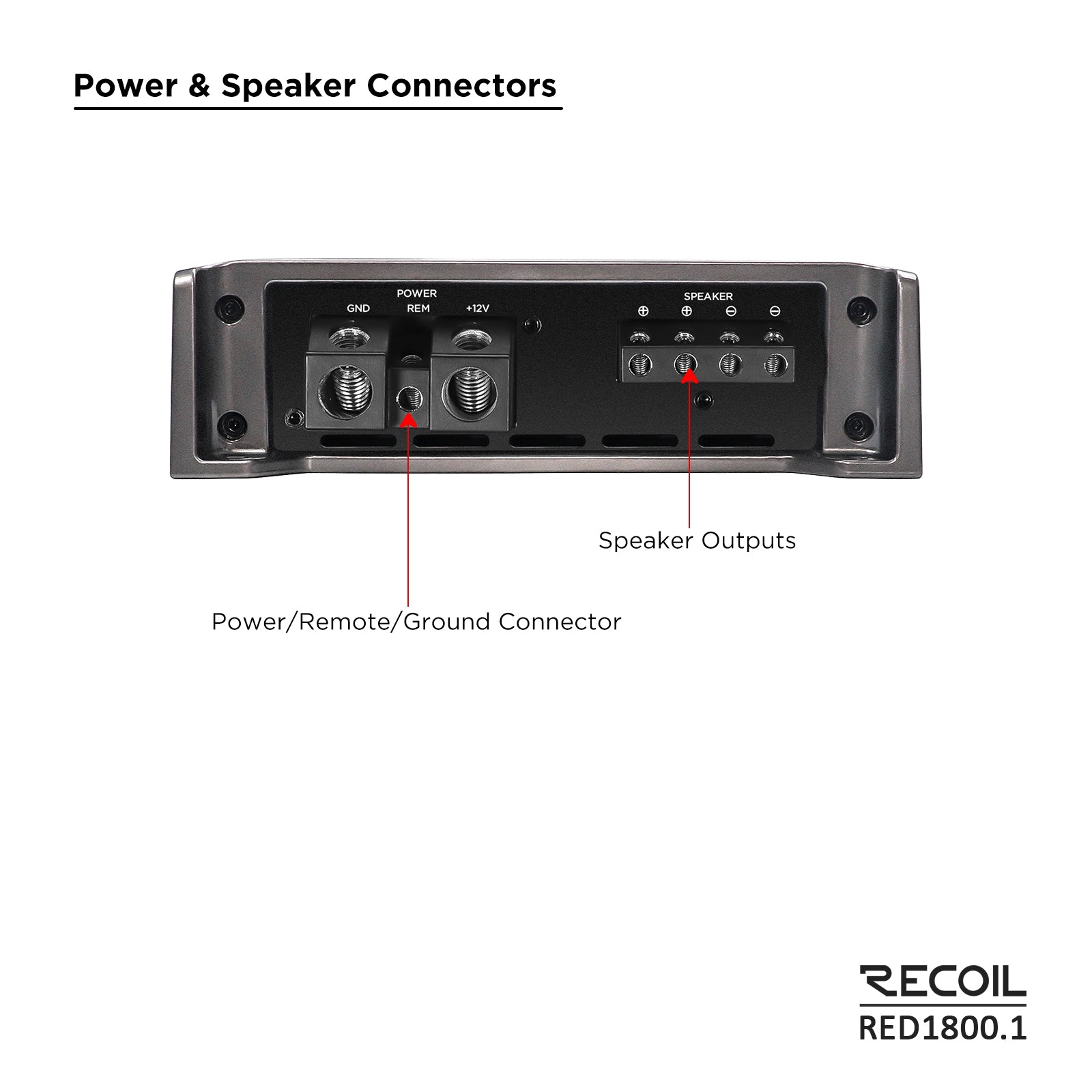

- Oversized 1/0 gauge power and ground terminals for maximum current flow
- 4-way protection circuitry: thermal, voltage, speaker, and DC short protection
- Soft turn-on circuit for smooth startup
Technical Specifications

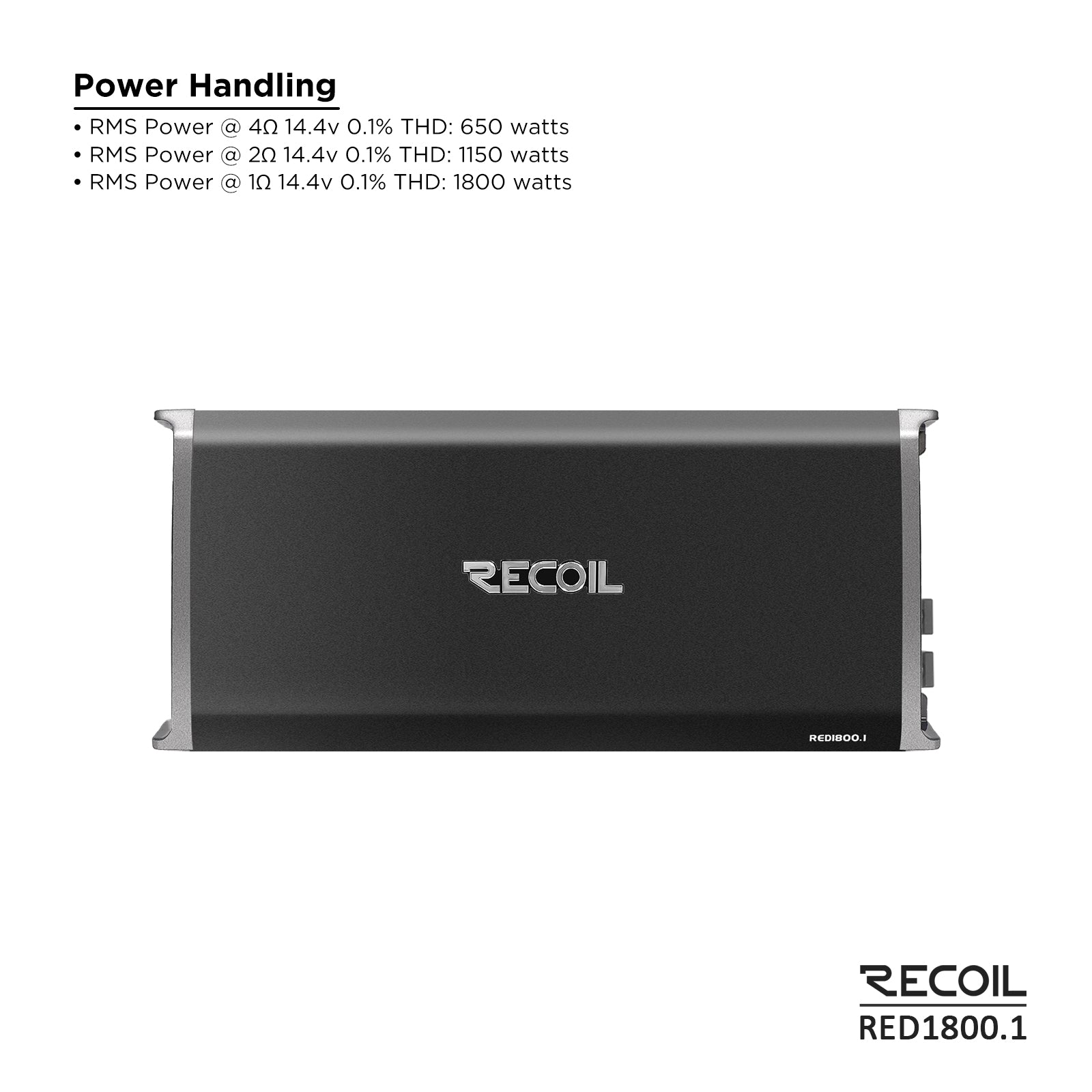

- RMS Power @ 1Ω: 1,800W x 1 Channel
- RMS Power @ 2Ω: 1,200W x 1 Channel
- RMS Power @ 4Ω: 650W x 1 Channel
- Linked RMS Power @ 2Ω: 3,600W x 1 Channel
- Linked RMS Power @ 4Ω: 2,400W x 1 Channel
- Frequency Response: 10Hz – 250Hz
- Input Sensitivity: 12V – 0.2V
- Signal-to-Noise Ratio: 97dB
- Bass Boost: 0–9dB
- Low-Pass Filter: 35Hz–250Hz (variable)
- Subsonic Filter: 10Hz–50Hz
- Fuse Rating: 130 Amp

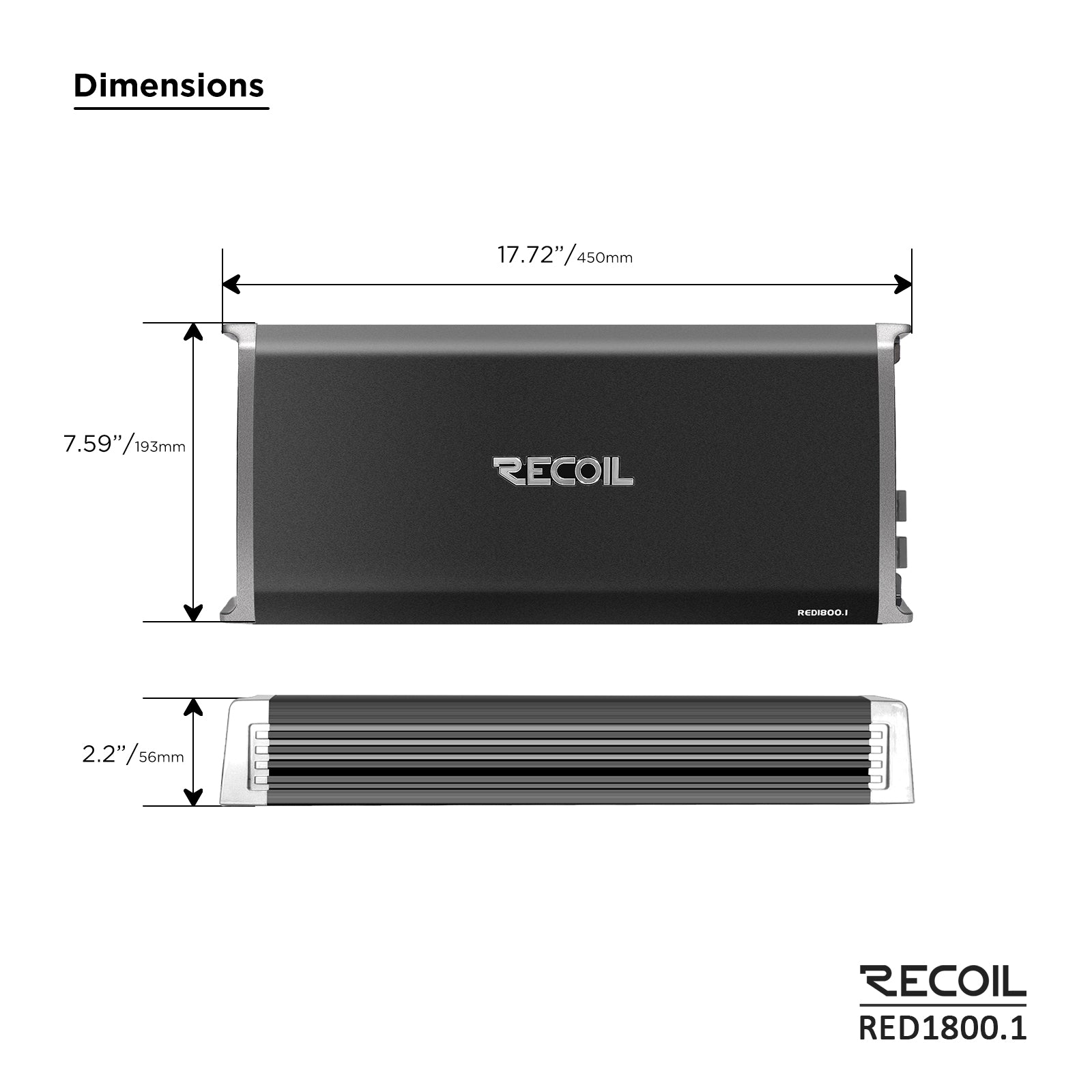

- Dimensions: 17.7" x 7.6" x 2.2" (450mm x 193mm x 56mm)
- Weight: 10.76 lbs
With robust strapping capability, high-fidelity power, and comprehensive protection features, the Recoil RED1800.1 is ideal for car audio enthusiasts seeking extreme subwoofer performance.
