Memphis MXAHDPRO4 '14+ HD 4 Speaker Kit

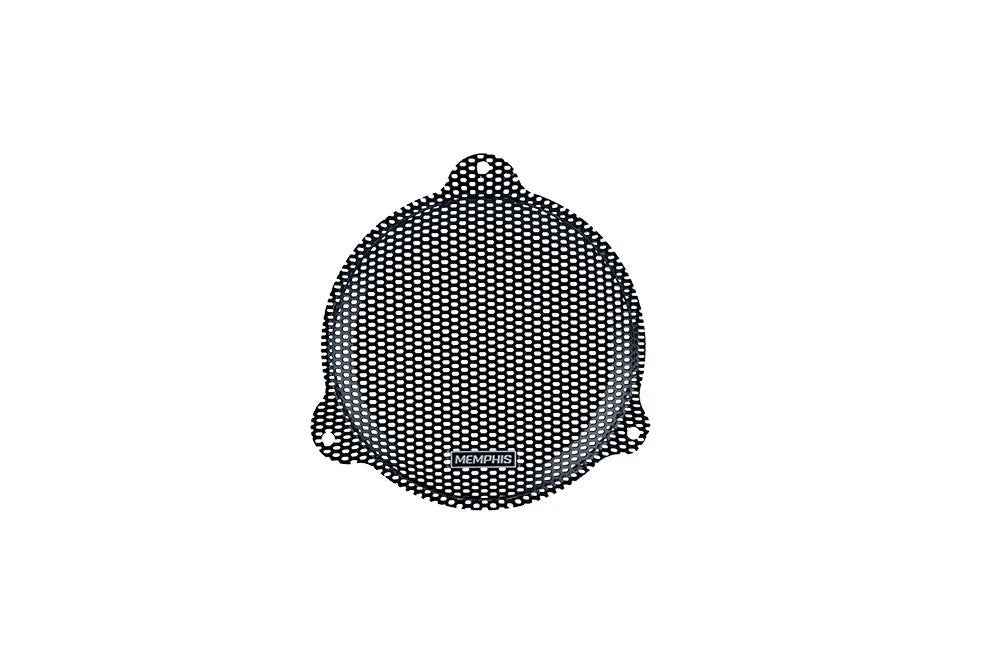

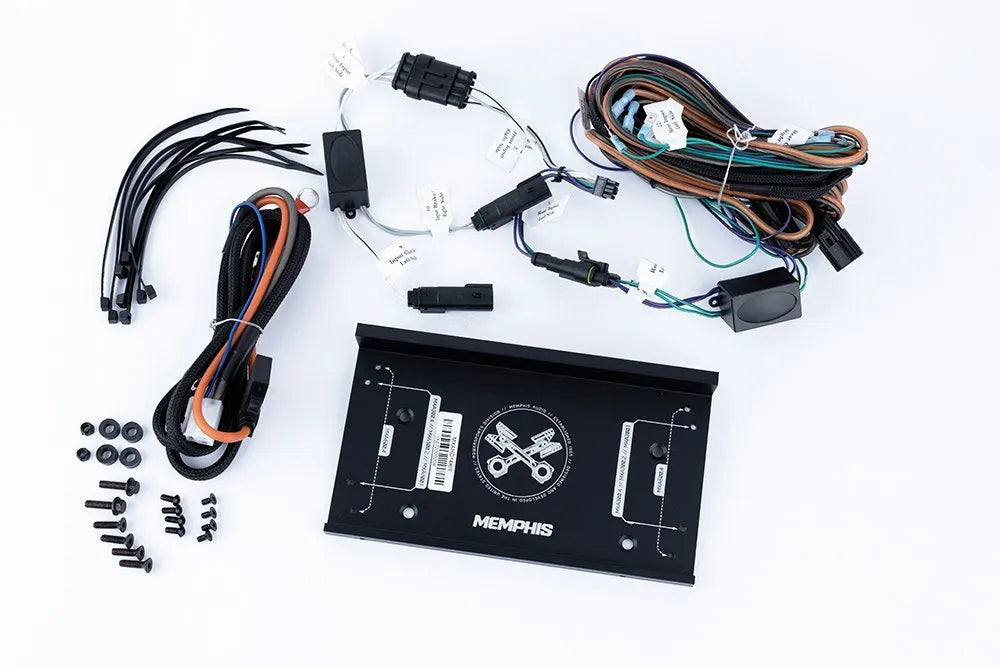

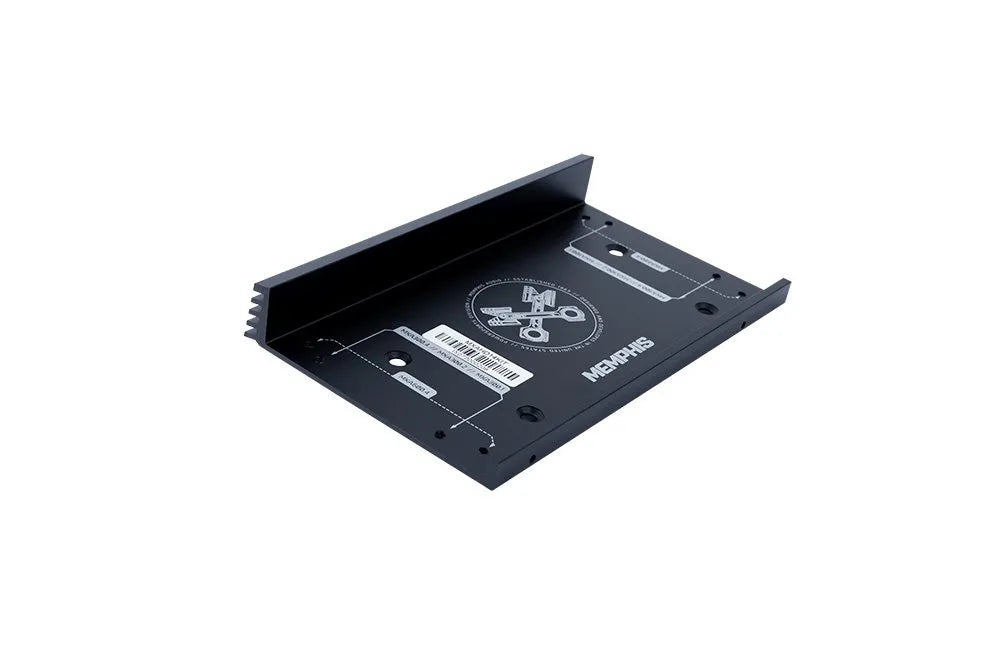

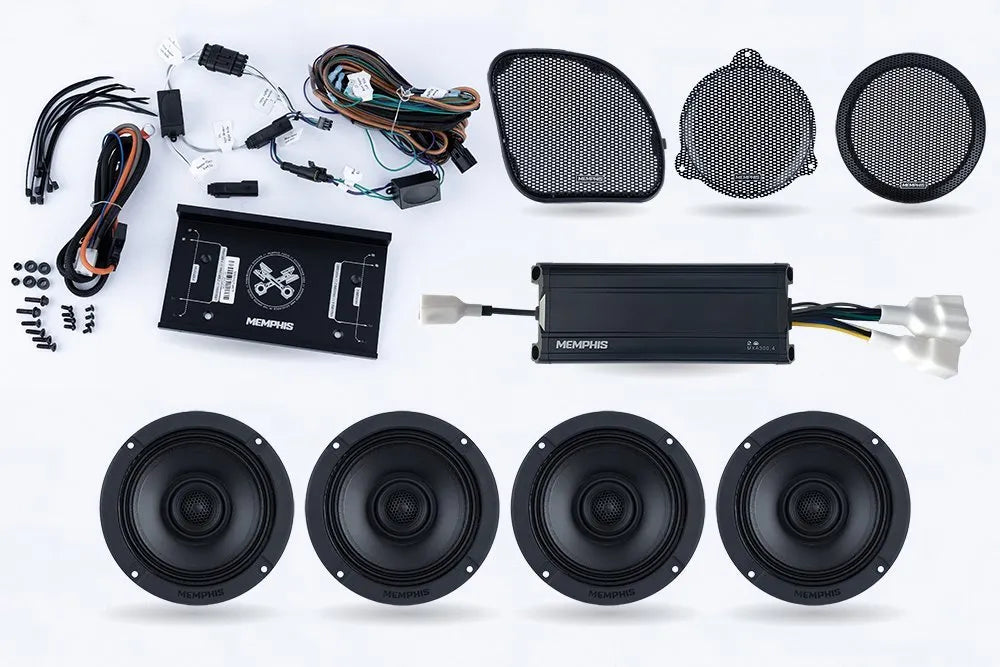

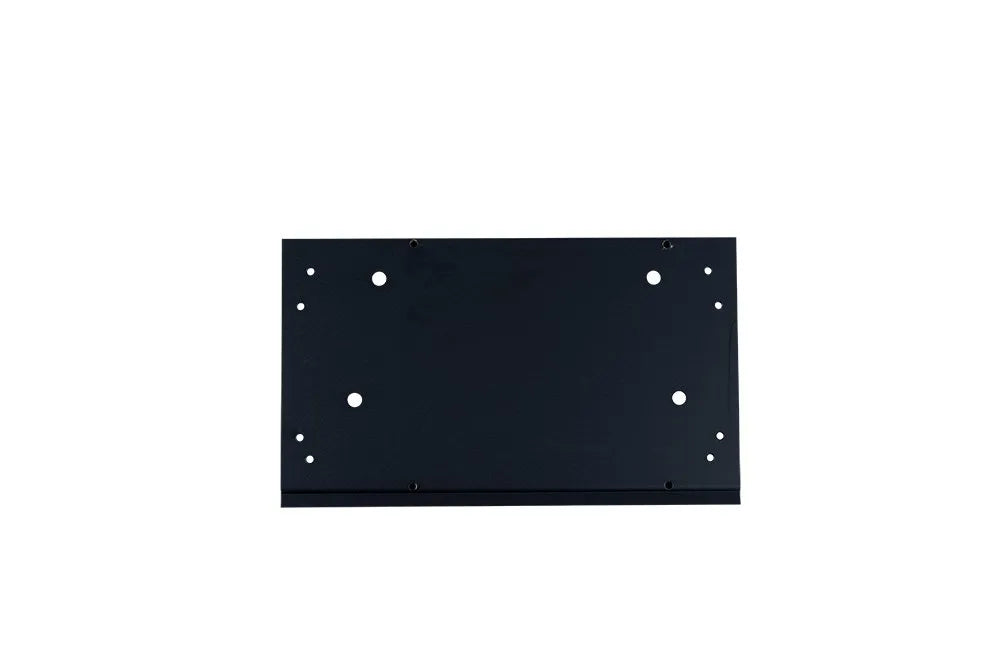

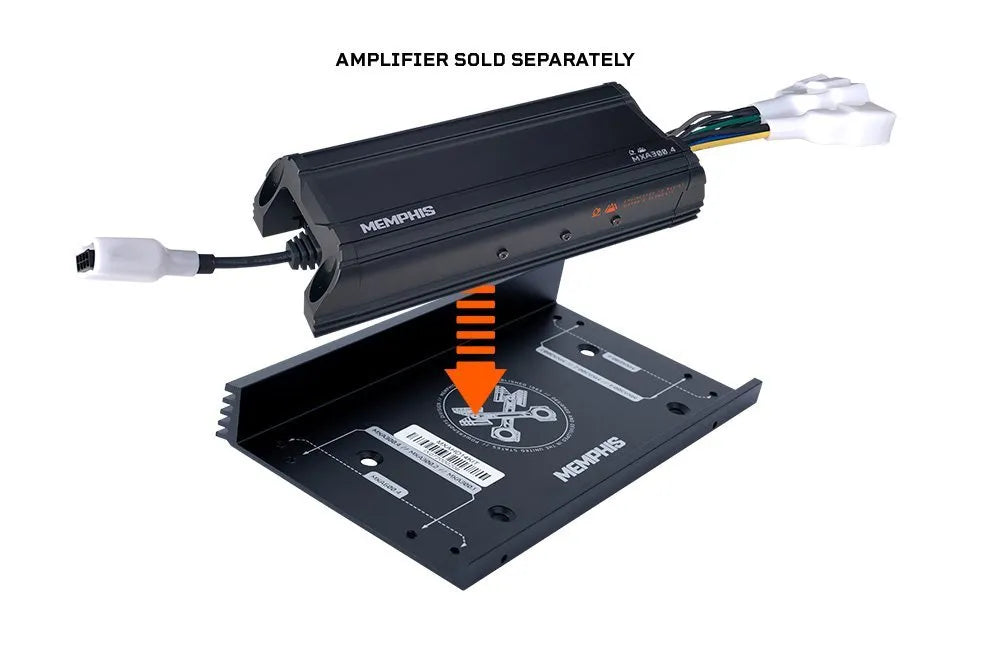

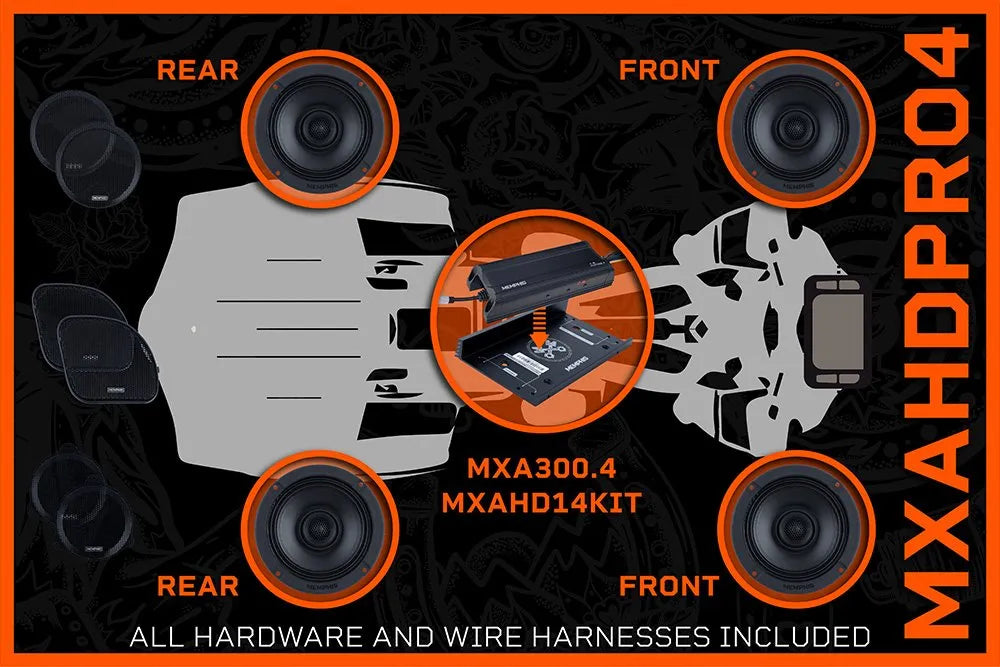

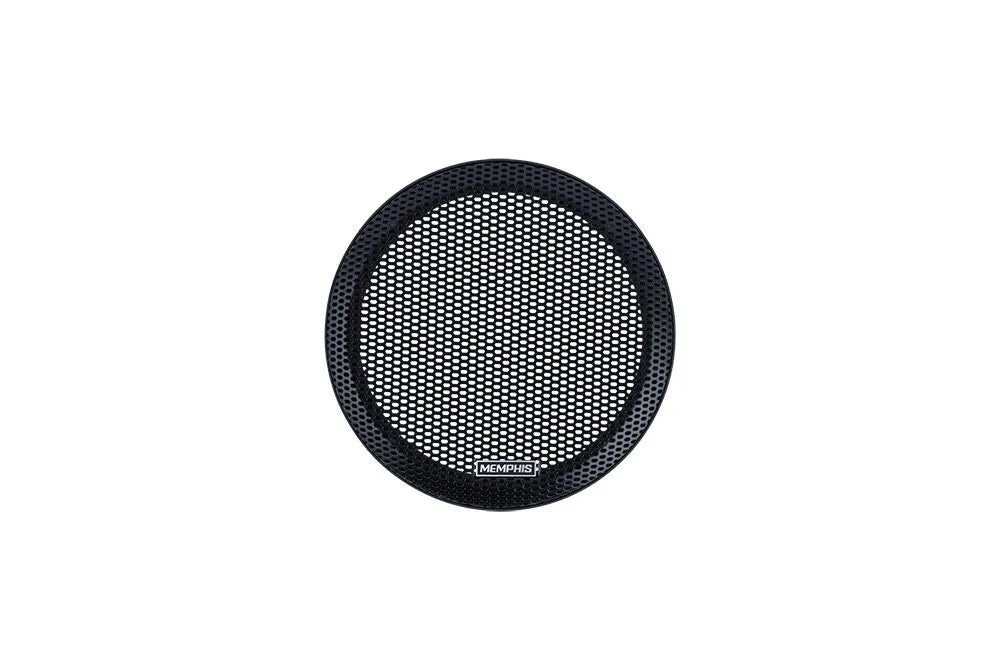

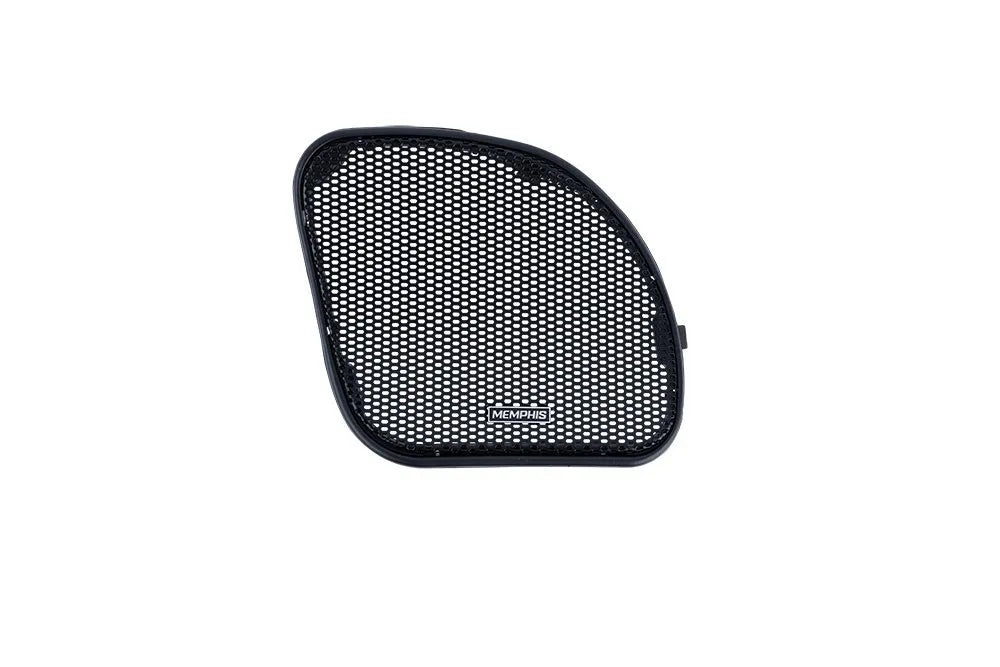

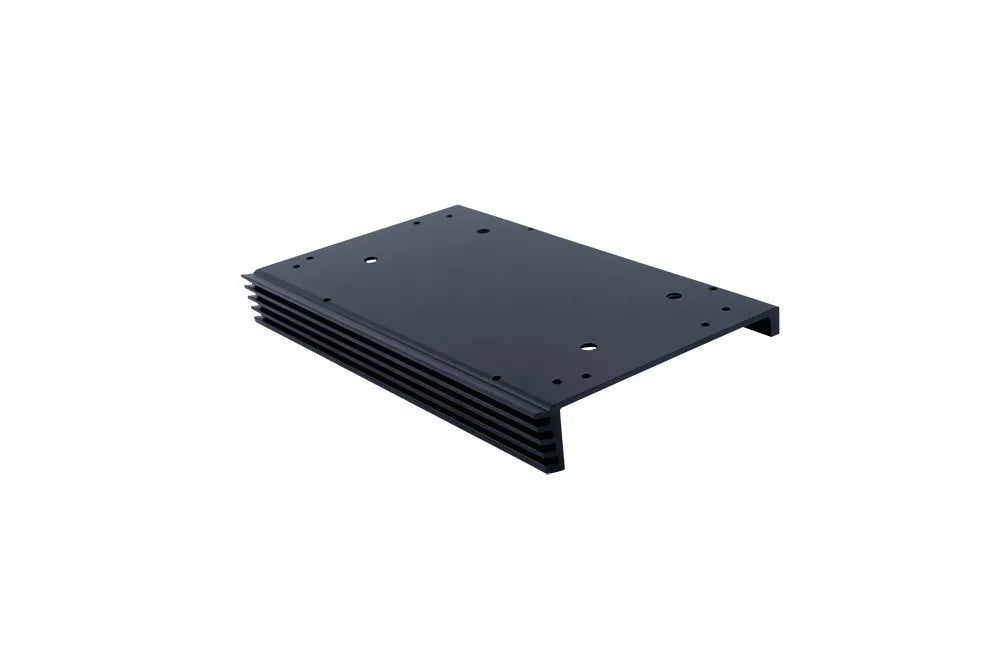

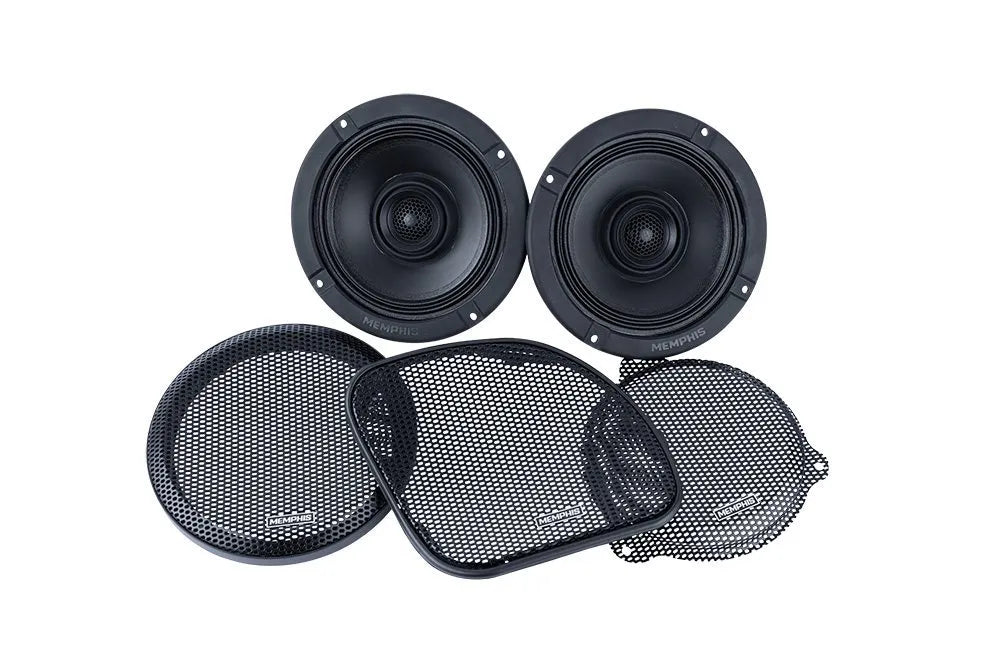

Memphis Audio OEM Direct Fit HD Pro 4 Complete 4 Speaker Audio System Upgrades are designed to fit in the OEM factory locations for 2014 and up Street Glide® and 2015 and up Road Glide® Motorcycle fairings as well as Tour Pak® locations. These kits include 4 high performance 6.5” speakers with 3 grill styles to fit your specific motorcycle. The speakers are designed to fit in the front fairing speaker location as well as Tour Pak® locations giving you a complete front and rear speaker upgrade in a single package. The included MXAHD14KIT includes an amplifier mounting bracket which establishes a secure amplifier mounting location on your motorcycle. The MXA300.4 Amplifier easily mounts to this location providing massive power to your system for audio that will perform at highway speed and over engine noise. The kit includes a wire harness that effortlessly connects to the factory Harley Davidson radio and does not require any flashing of the radio.

DIRECT FIT FRONT SPEAKER PODS
IPX6 rated pods
RGB LED Speaker lighting, floor lighting and logo
Injection molded poly propylene front pods
Sealed connectors
Plug and play harnesses
Designed specifically for your vehicle

MXA62PS REAR SPEAKER PODS
Water and UV resistant
Polypropylene woofer
Silk dome tweeter
Adjustable aluminum hardware
Built in RGB LED lighting
IP66 Rated

SMC2A APP CONTROLLED SOURCE UNIT
APP CONTROLS:
RGB setting
Custom EQ settings
Balance/Fade
AM/FM Presets Controls
Radio search settings
Manual/Seek/Presets
SMC2A FEATURES:
5 Source Options: AUX/BT/AM/FM/WB
USB charging
50Wx4 built-in amplifier
RGB LED control output
Front/Rear/Subwoofer RCA output
2.5 Volt pre-amp output
Conformal coated PCB IP66 Rated
4 BUTTONS WITH ROTARY KNOB:
Wired remote (IP66 rated)
Illuminated remote, color change to indicate source
Fits in standard rocker switch cutout

MXA300.4 – 4 CHANNEL AMPLIFIER
IP66 Water resistant
High/Low Level inputs
Sealed Connectors
Compact footprint

MXASSKITPROPWR
Pro Level Media Center Wire Harness

MXASSKITRRHR
Rear Speaker Harness For OEM Direct Fit Kits

GENRRSPBRK
Vehicle specific rear speaker mount for MXA62PS

MXAHDPRO4

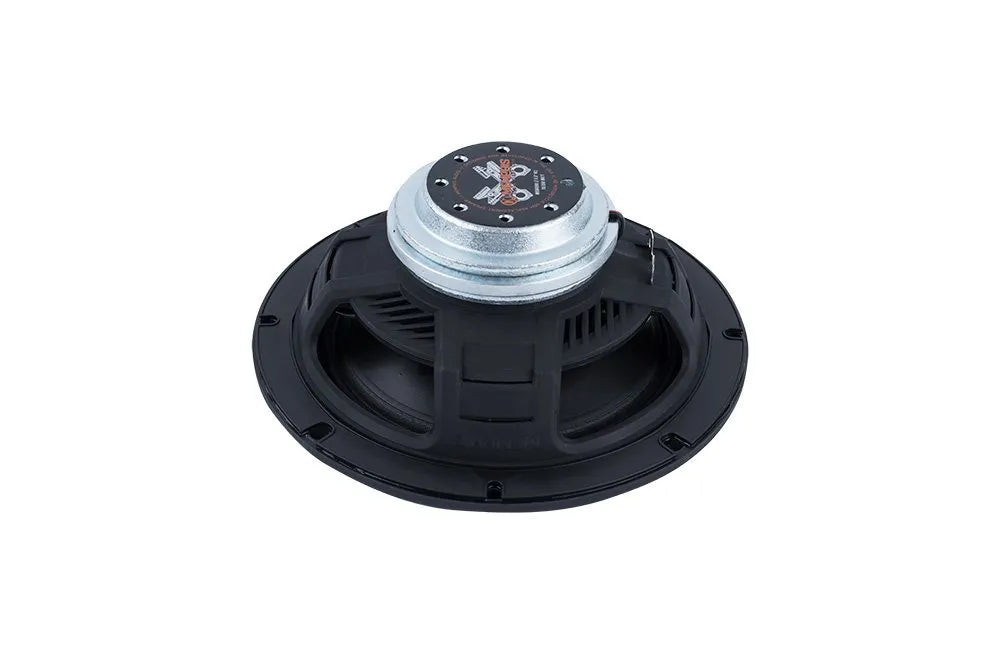

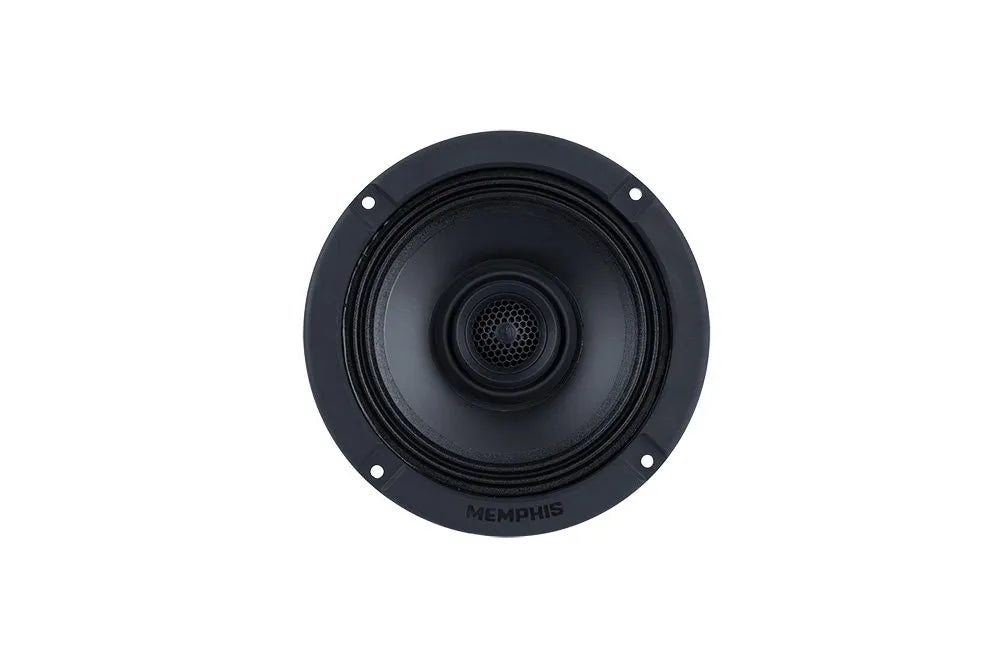

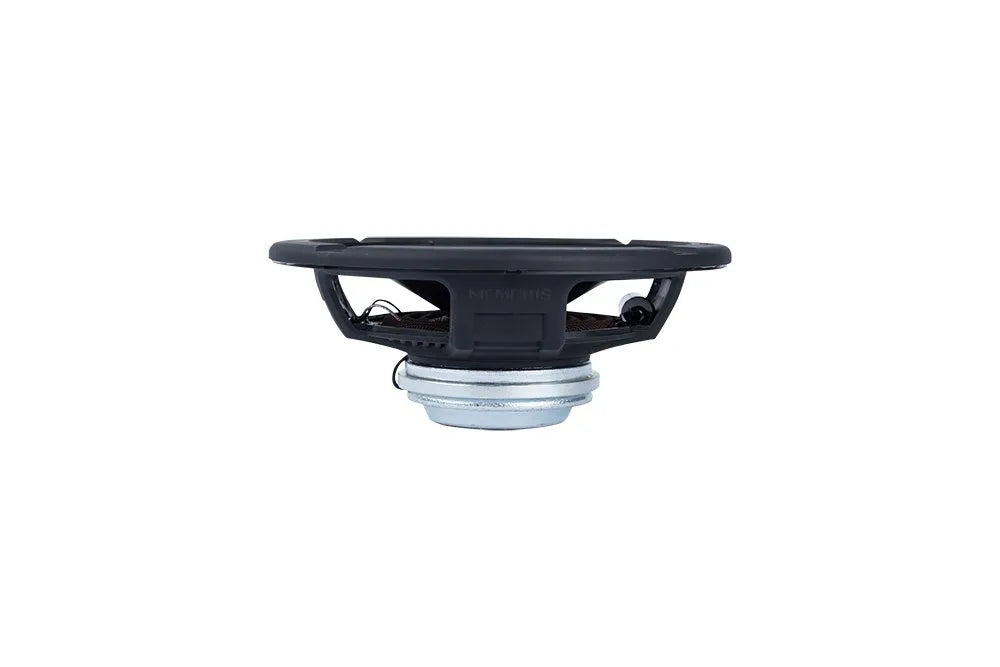

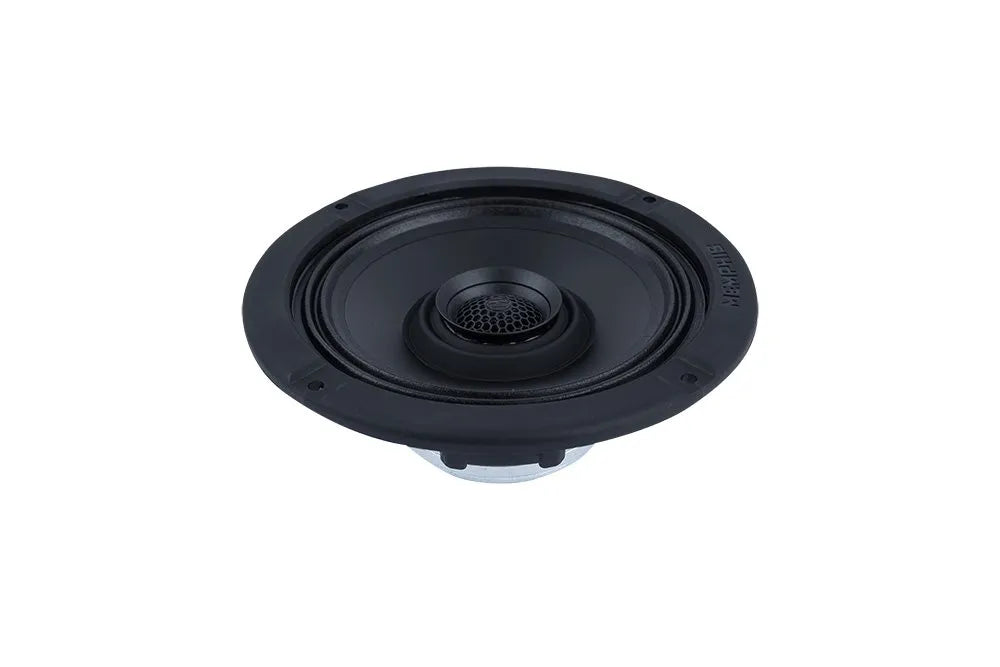

MXA62HD SPEAKER SPECS
SIZE	6.5”
RMS	75w
PEAK	150w
SENSITIVITY	93Db
MAGNET TYPE	NEODYMIUM
MOUNTING DEPTH	2.3”
MXA300.4 AMPLIFIER SPECS
RMS Power 4Ω (w)	65 x 4
RMS Power 2Ω (w)	75 x 4
THD % 4Ω	<1%
Frequency Response	20Hz – 20kHz
Dimensions (in)	3.25 x 1.75 x 8.6

MXA62HD Instruction Manual

MXAHD14KIT INSTRUCTION MANUAL

MXA300.4 INSTRUCTION MANUAL
