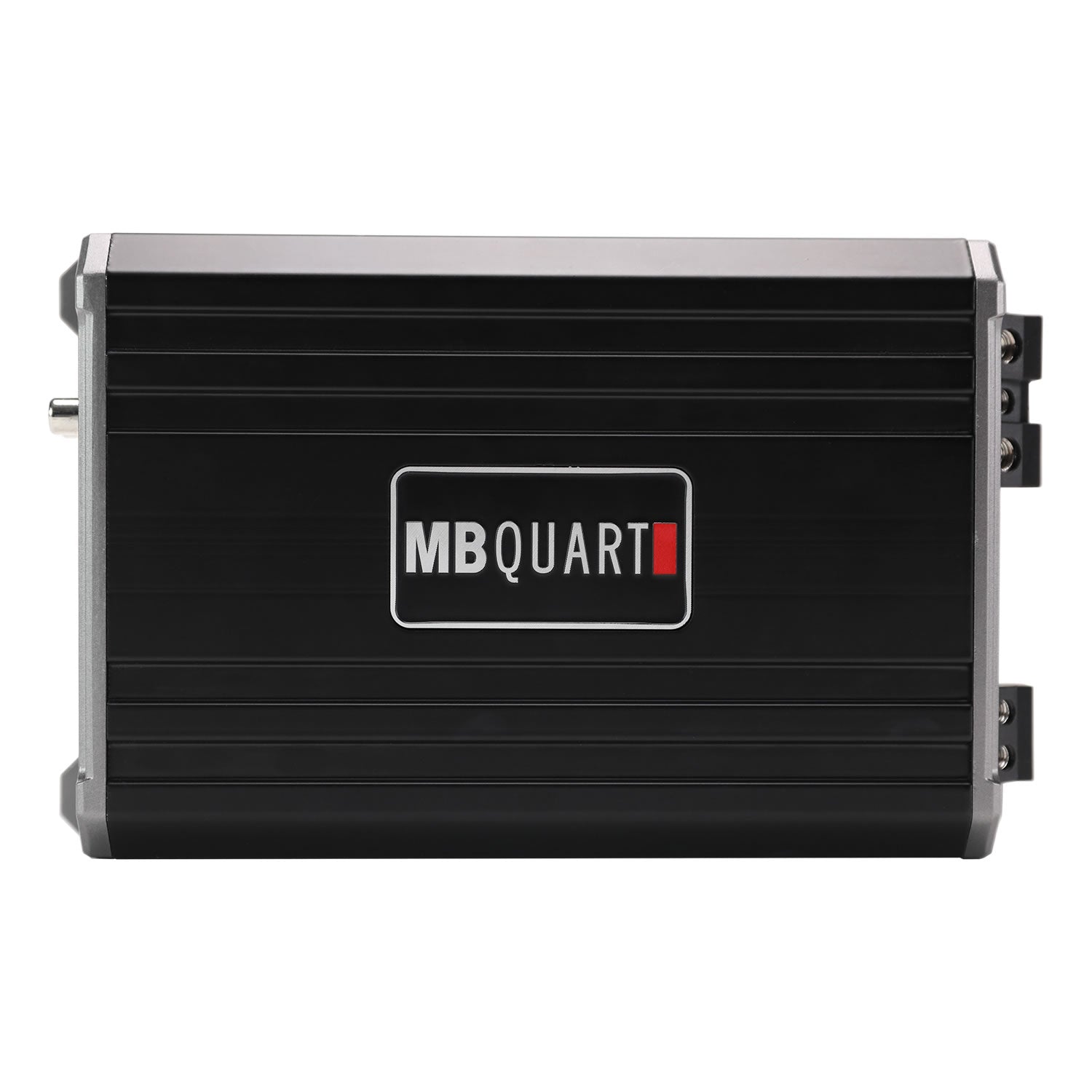

MB Quart PA1-3000.1 Premium Pro 3000W Mono Subwoofer Amplifier – Class D Amp with Bass Remote
MB Quart PA1-3000.1 Premium Pro 3000W Mono Subwoofer Amplifier – Class D Amp with Bass Remote
Couldn't load pickup availability

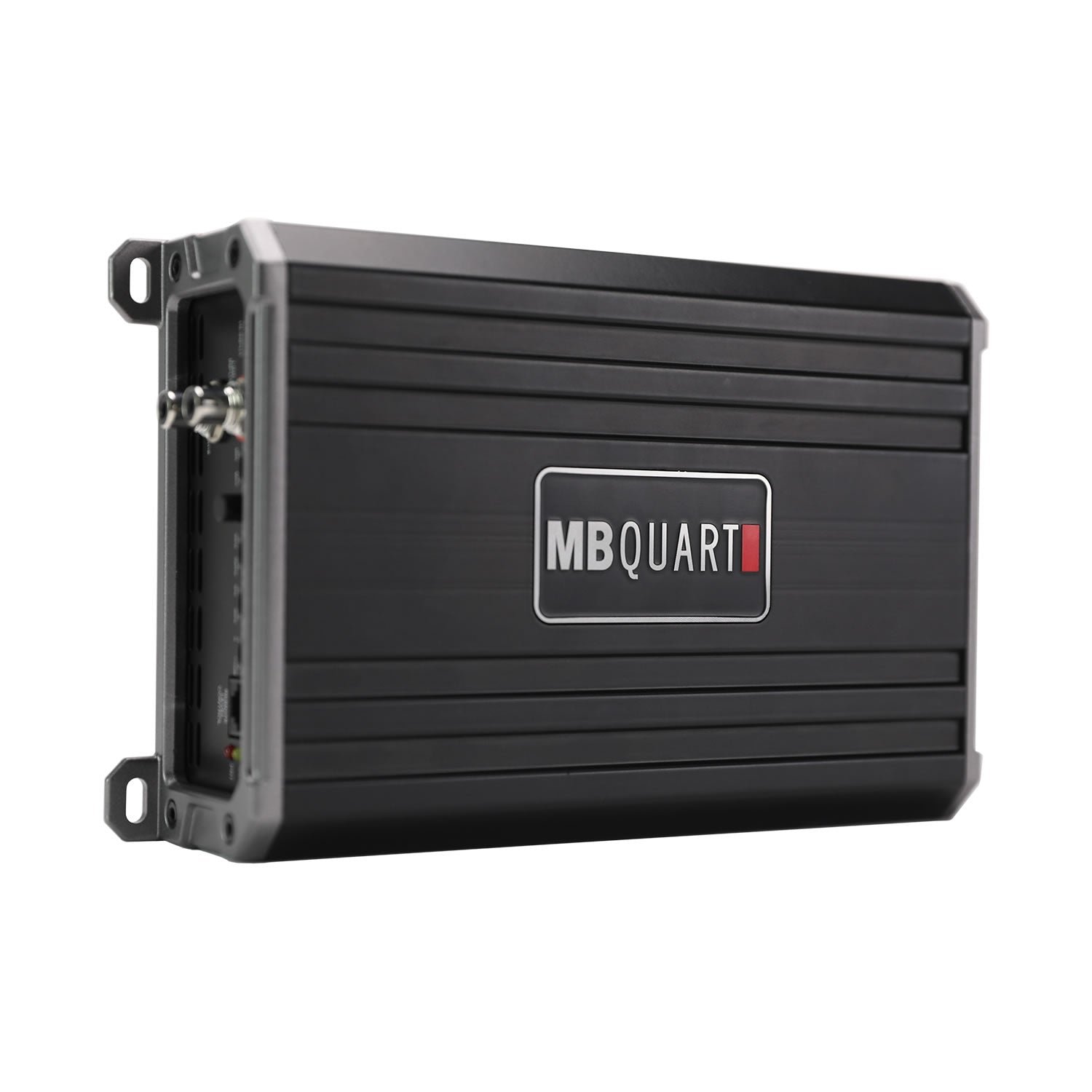

The MB Quart PA1-3000.1 Premium Pro is a high-performance mono-block amplifier engineered to deliver up to 3000 watts of clean, efficient power to your subwoofer system. Built with advanced Full Range Class D technology, it maximizes output while minimizing heat and power draw, making it ideal for high-output mobile audio setups.
This amplifier includes a bass remote for convenient gain control from anywhere in your vehicle, and a low-noise preamplifier circuit that reduces incoming source noise for crystal-clear sound. Its flexible input options, including RCA and high-level connections, allow seamless integration with factory or aftermarket audio systems.
Key Features:
- 3000 Watts Max Power – Peak mono-block output for subwoofers
- Mono Operation – Perfect for powering a single subwoofer or subwoofer system

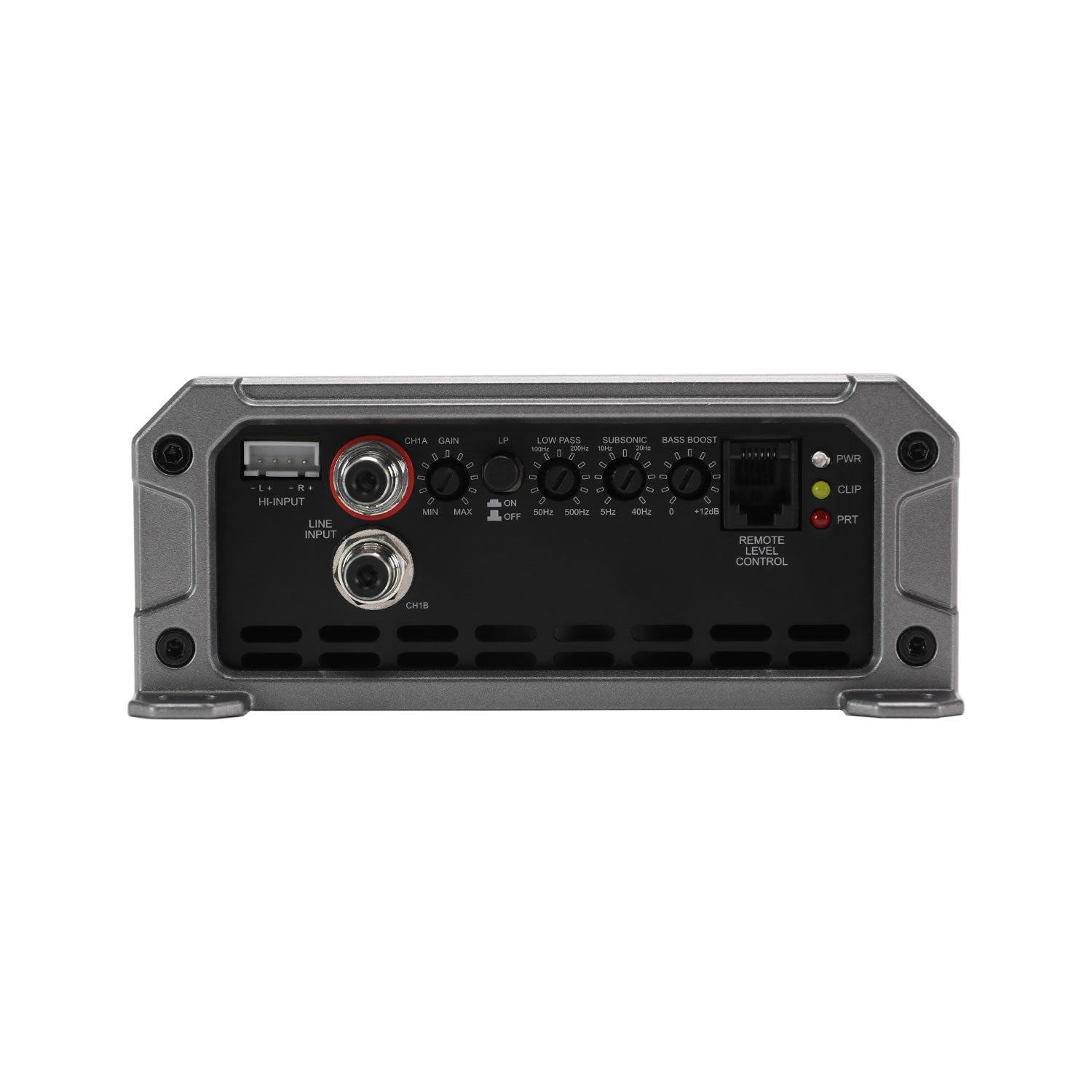

- Variable Low-Pass Crossover: 50Hz–500Hz, Switchable LPF On/Off
- Bass Boost: 0–12dB adjustable via included wired remote
- Subsonic Filter: 5Hz–40Hz for precise low-frequency control
- Low-Noise Preamplifier Circuit: Reduces interference and improves clarity

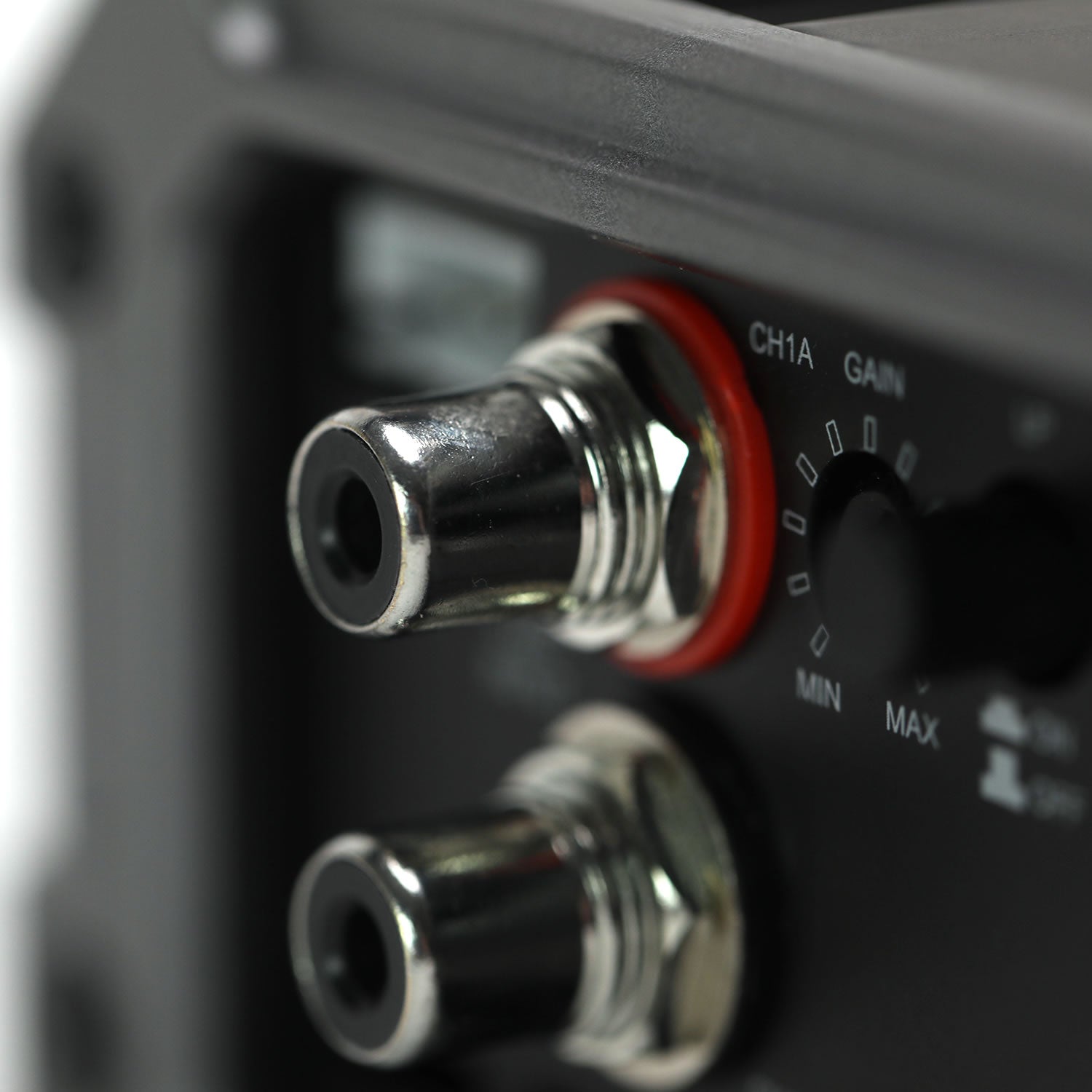

- RCA Inputs: Tiffany-style nickel-plated connectors for corrosion-resistant signal transfer

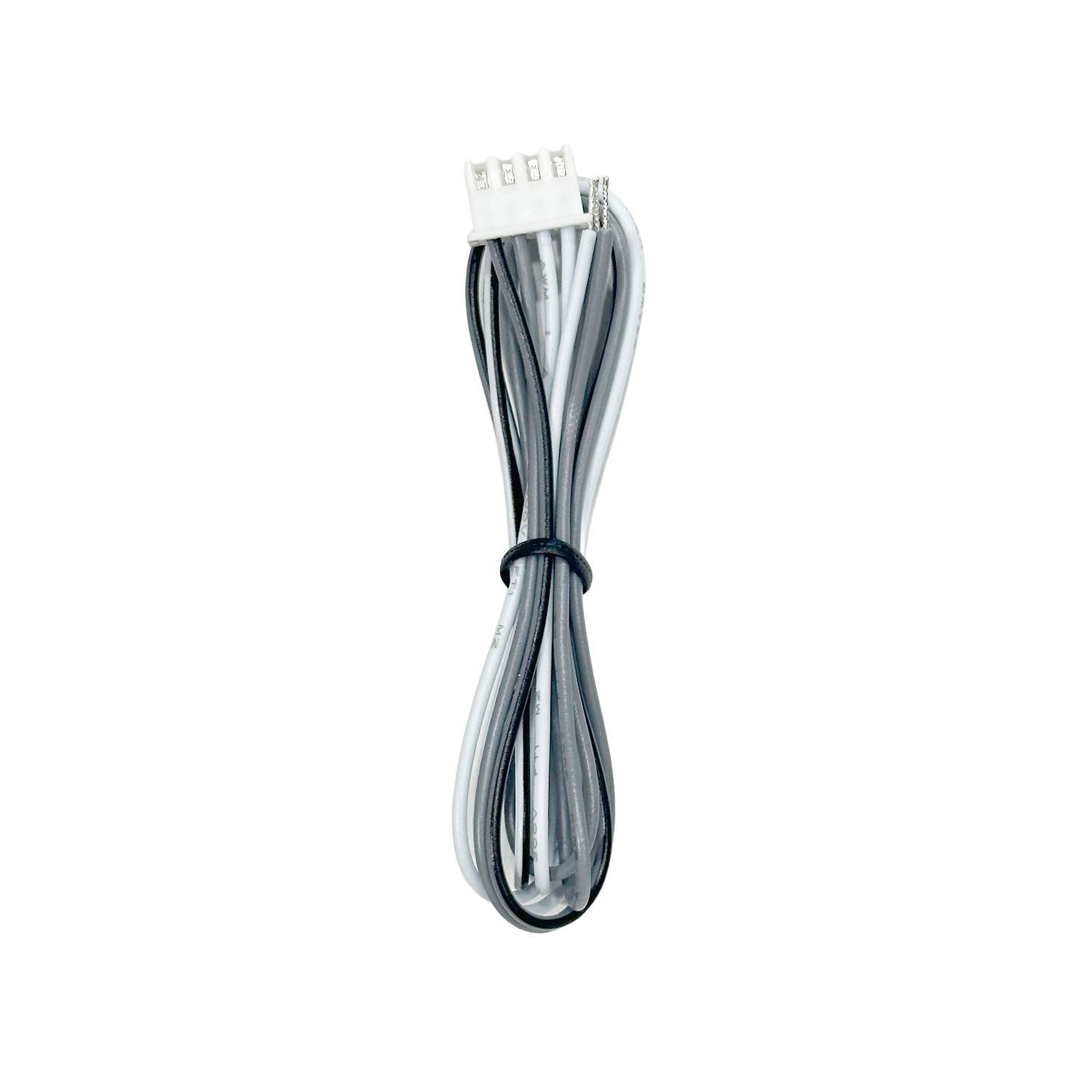

- High-Level Inputs: Compatible with OEM systems lacking RCA outputs
- Power Supply: PWM MOSFET for efficient, stable output

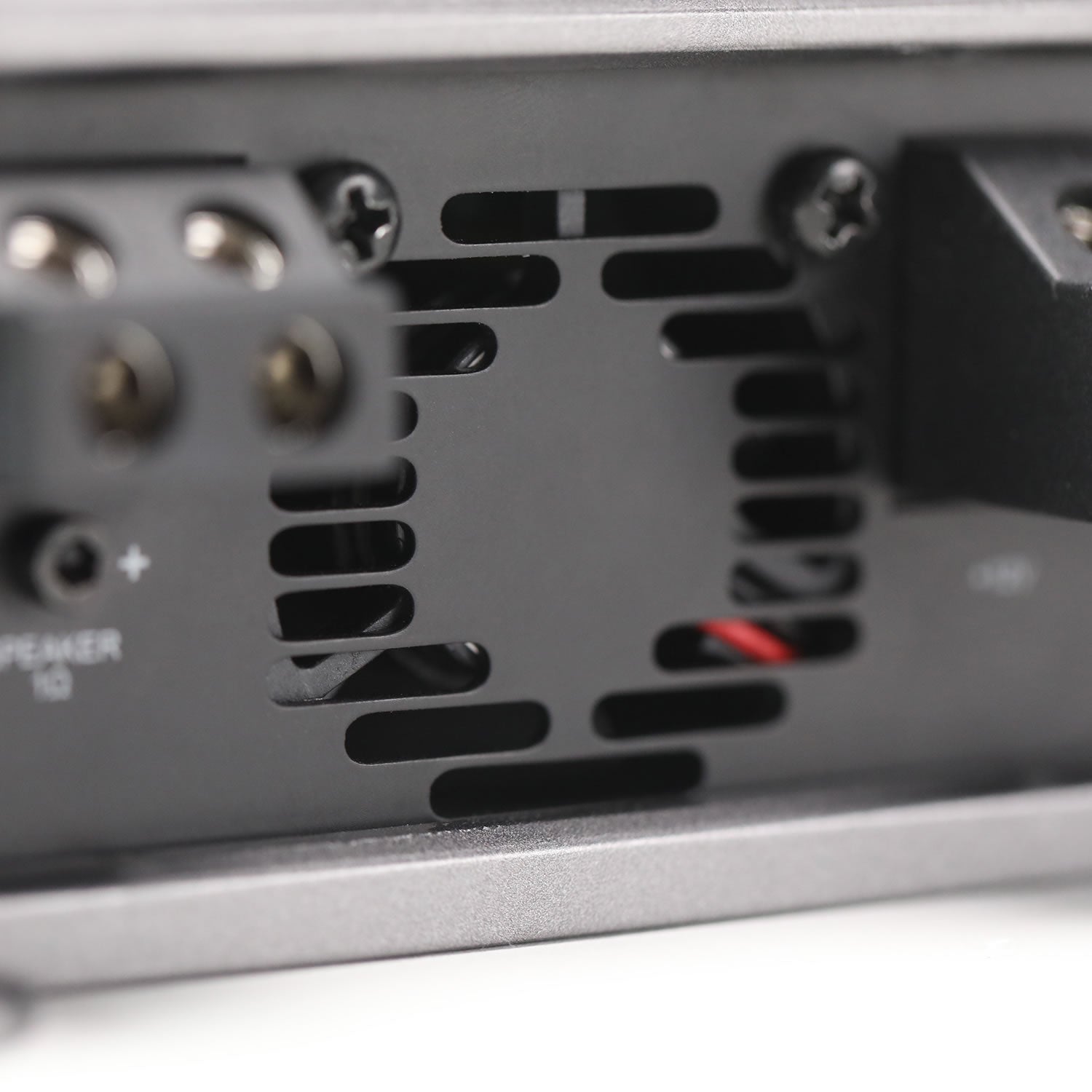

- Cooling: Extruded aluminum heatsink with built-in fans for extended low-impedance operation

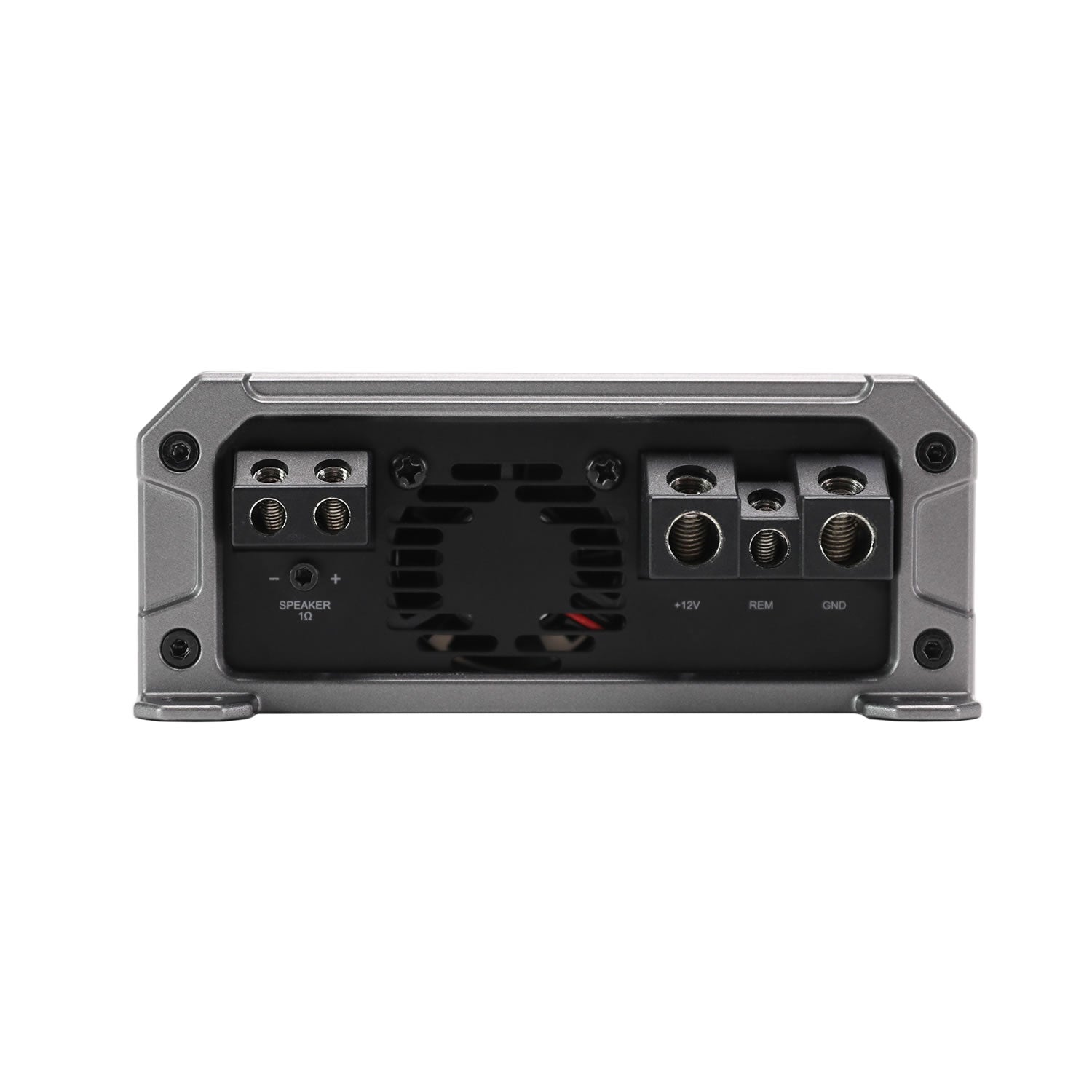

- Output Connections: Heavy-duty, nickel-plated terminals for secure signal transfer
- Protection Circuitry: Thermal, overload, DC, and speaker short monitoring with LED indicators
Specifications:
- Brand: MB Quart
- Dimensions: 7.87 x 5.31 x 2.17
- Series: Premium
- Type: Mono-block Amplifier
- Class: Full Range Class D
- Frequency Response: 10Hz–30kHz
- Signal to Noise Ratio: > 102dB
- Total Harmonic Distortion: 1.0%
- Voltage Input: High: 2.9–40V / Low: 0.3–5.5V
- Power/Ground Terminal: 4 AWG
- Speaker Terminal: 8 AWG
- Fusing: External 250A
- Condition: New
- Color: Black
- Warranty: 1 Year
- Vehicle Compatibility: Universal

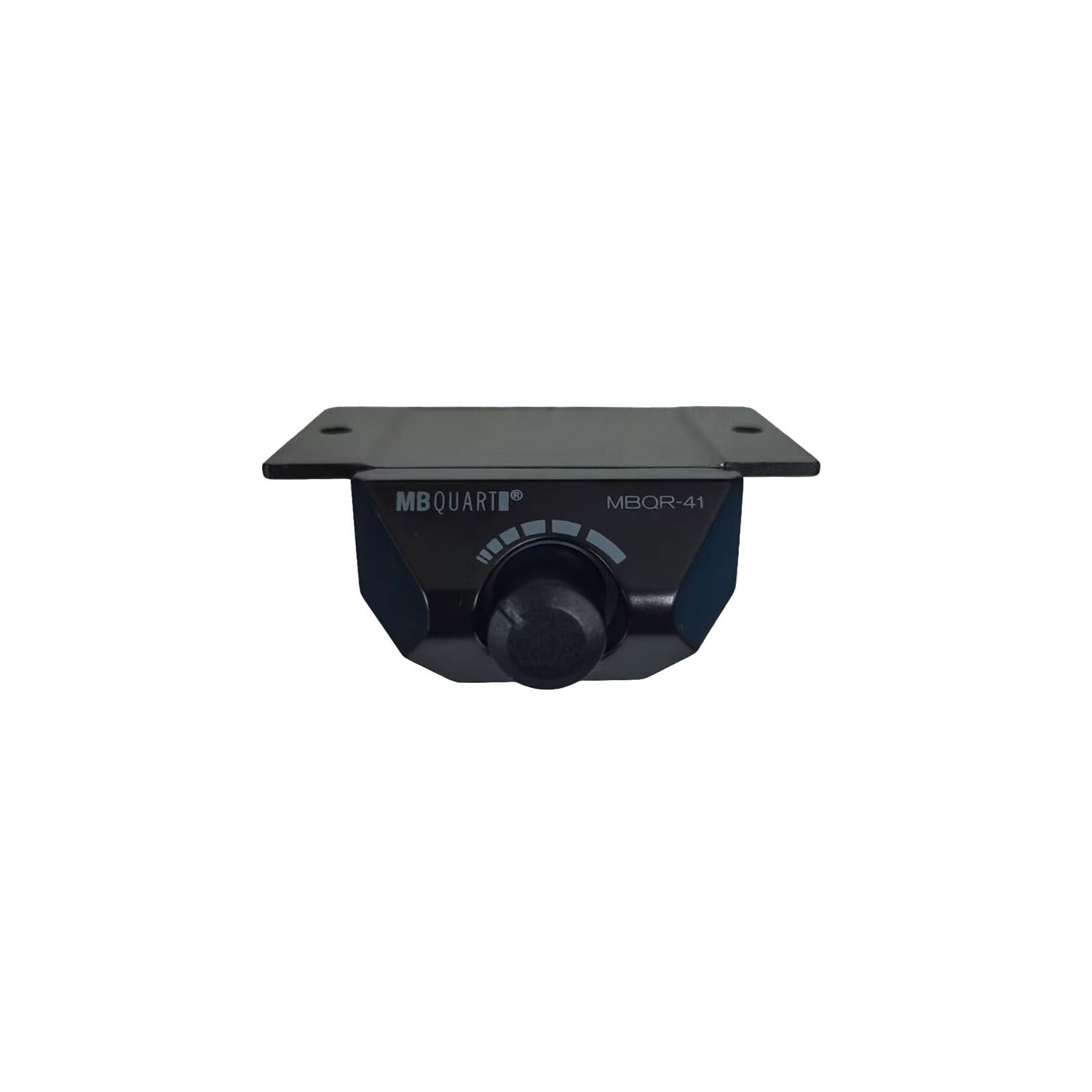

- Included: Wired Bass Remote
Experience powerful, clean bass with the MB Quart PA1-3000.1 Premium Pro Mono Amplifier, designed for efficient, high-output subwoofer performance.
