MB Quart MBQ-CAM-1 Auxiliary Camera Kit
MB Quart MBQ-CAM-1 Auxiliary Camera Kit
Couldn't load pickup availability

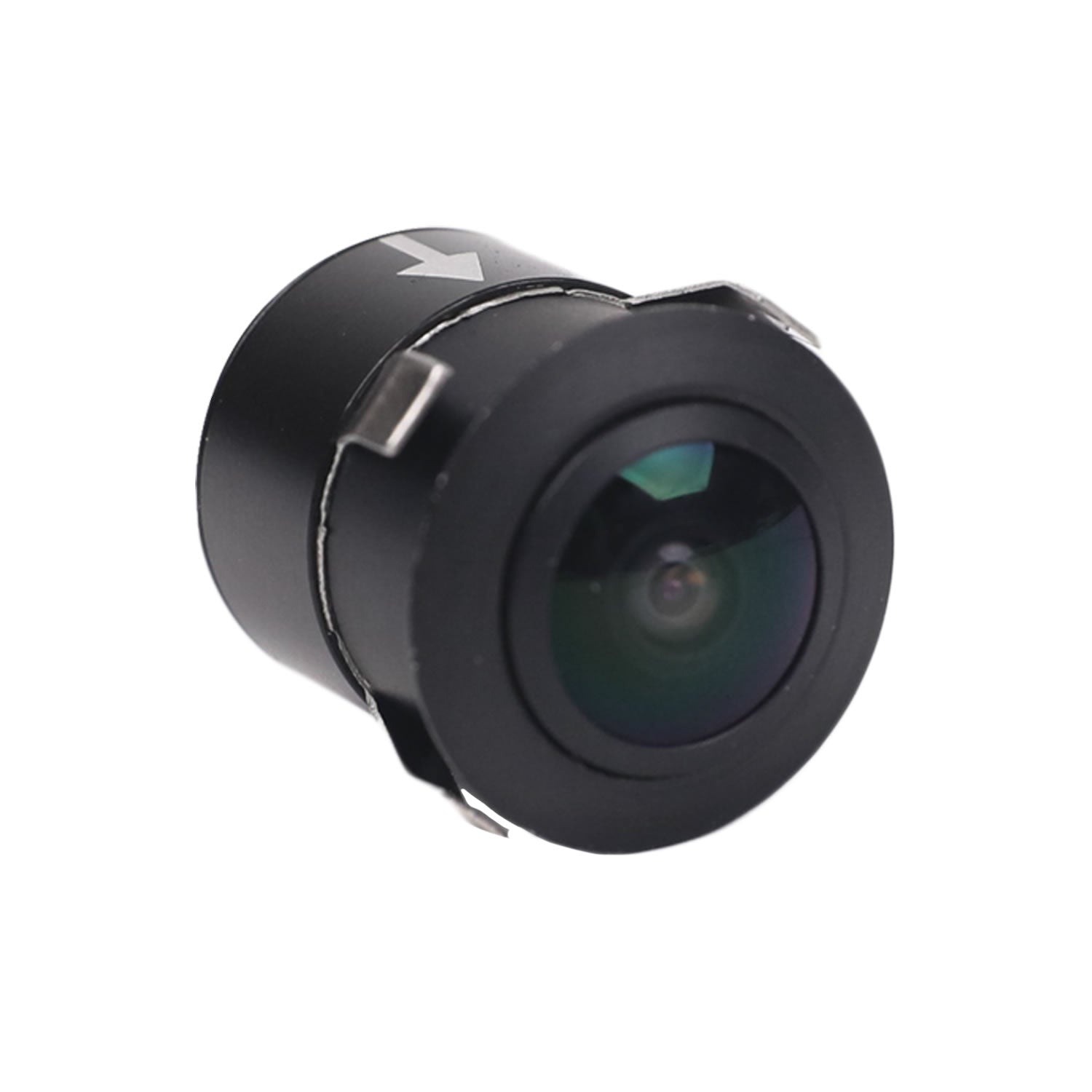

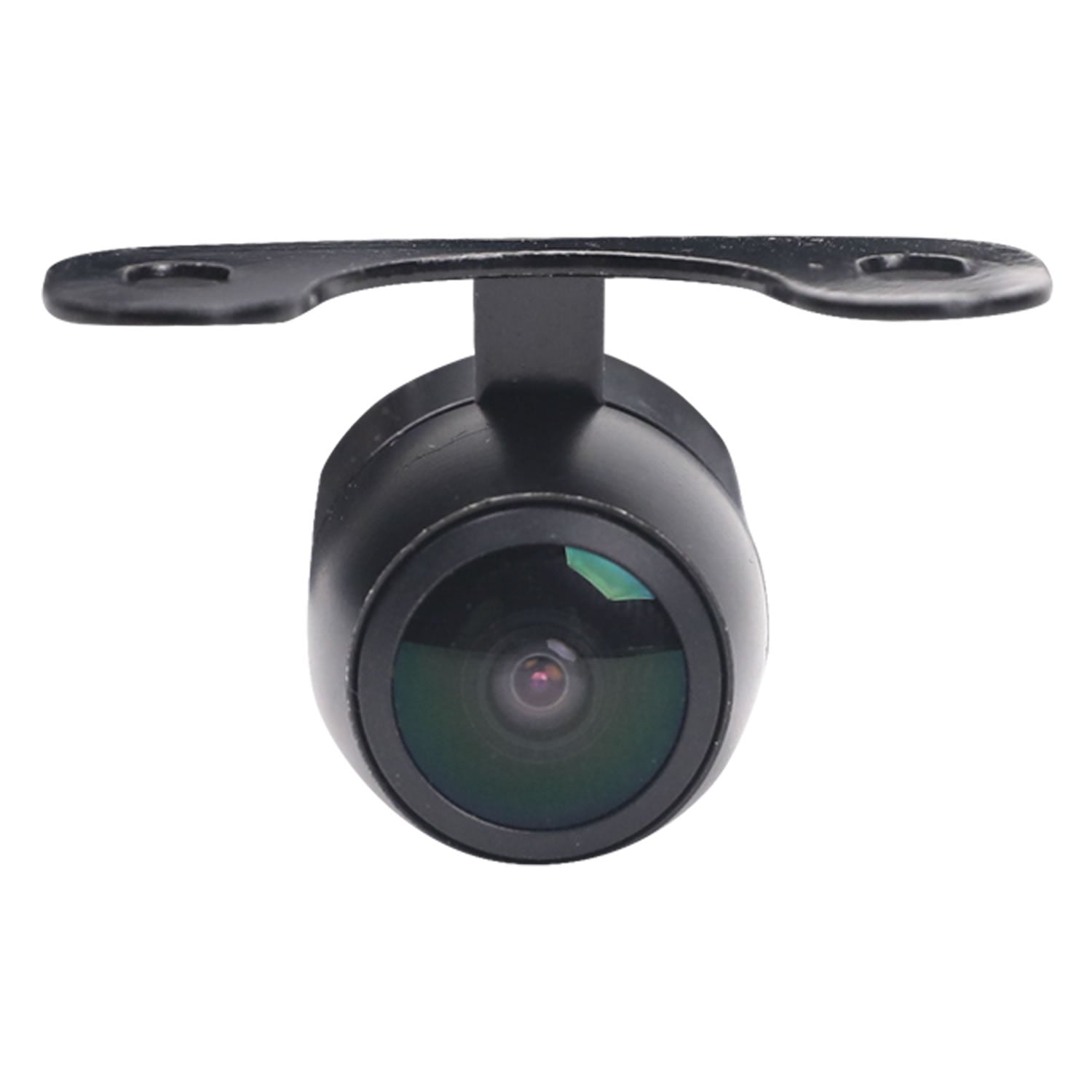

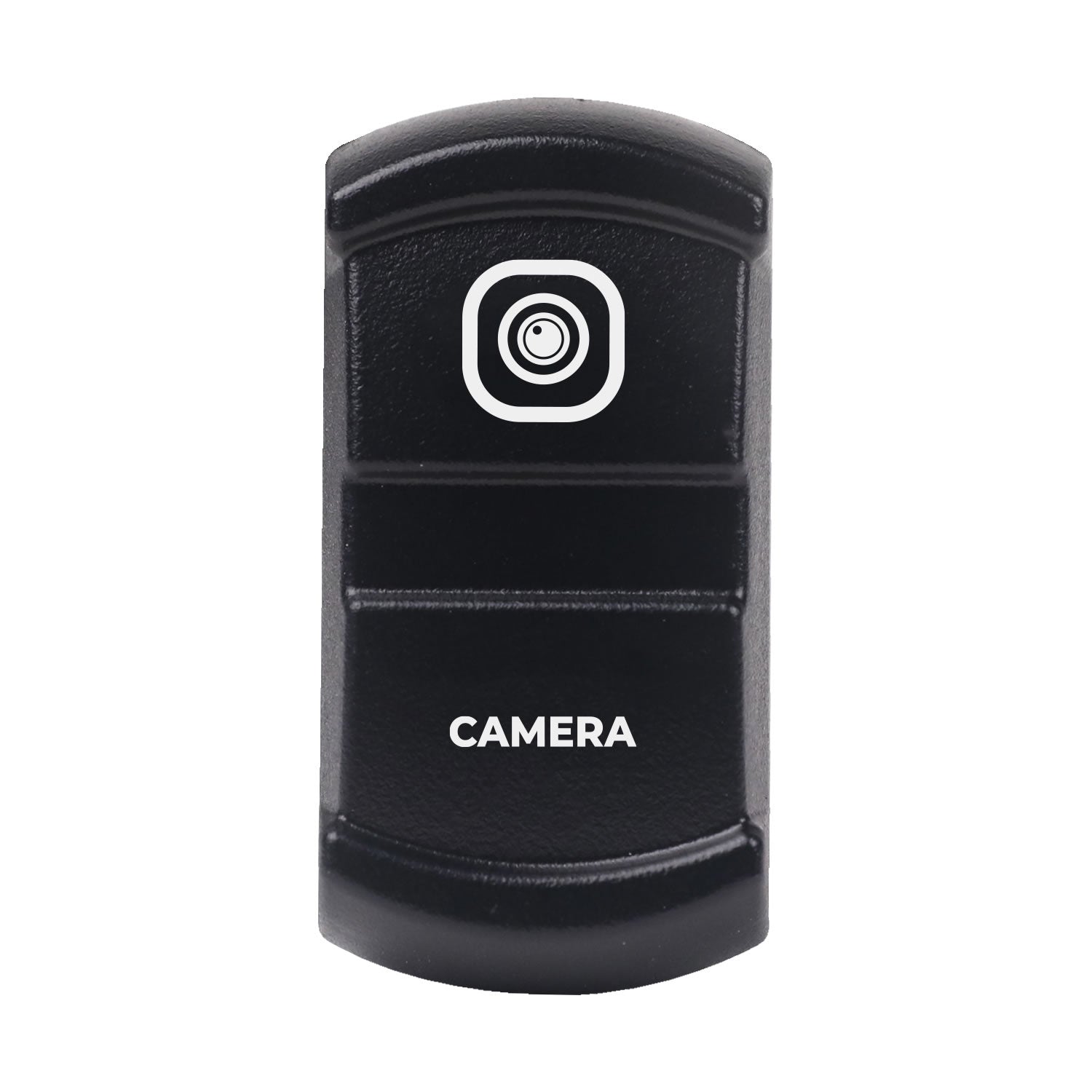

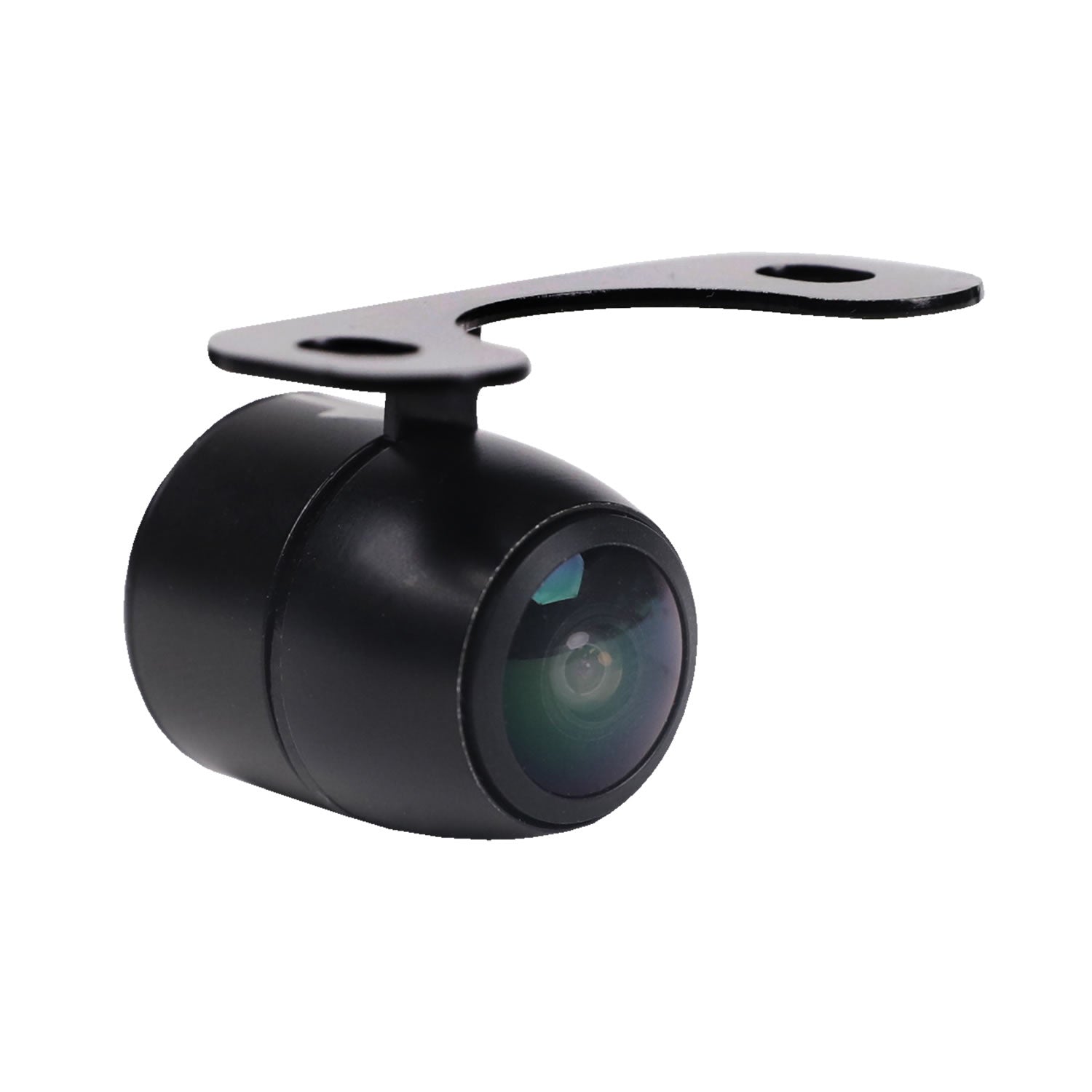

The MB Quart MBQ-CAM-1 is a universal camera kit that is compatible with the GMR-LED, GMR-7V1, and most other source units with camera inputs. Includes a 1/3 inch CMOS sensor camera, mounting hardware, and carling switch.
| Item Length (in) |
0.669291 (17mm) Diameter |
|---|---|
| Item Width (in) |
1.06299 (27mm) Depth |
| Item Height (in) |
0.669291 (17mm) Diameter |
| Type |
Camera |
| Brand |
MB Quart |
| Series |
MBQ-CAM |
| Category |
Marine, Mobile, Powersports |
| Condition |
New |
| Color |
Black |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Accessory Dimensions |
Carling Switch Hole Cut Out (in): 0.9 Round, Unit Dimensions (in): 1.4 Round x 1.9 Depth |
| Compatible Vehicle Fitment |
Universal |
|---|---|
| Compatible Product Models |
MB Quart and Universal Source Units. |
| Marine Grade Protection / IPX Rating |
IP67/IP69K |
| Installation |
Universal installation - flush and stand alone mounts are included to cover all applications. |
| Other Features |
IPX Rating: IP67/IP69K; Horizontal Angle: 150 degree; Vertical Angle: 170 degree; Image Sensor: 1/3" CMOS; Optical Format: NTSC; Signal to Noise Ratio: >48dB(AOC on); Input Voltage: 12v DC; Mirror or Real Image: Both (cut loop); Parking Lines: None; LED: None; EMC: RE-10 |
