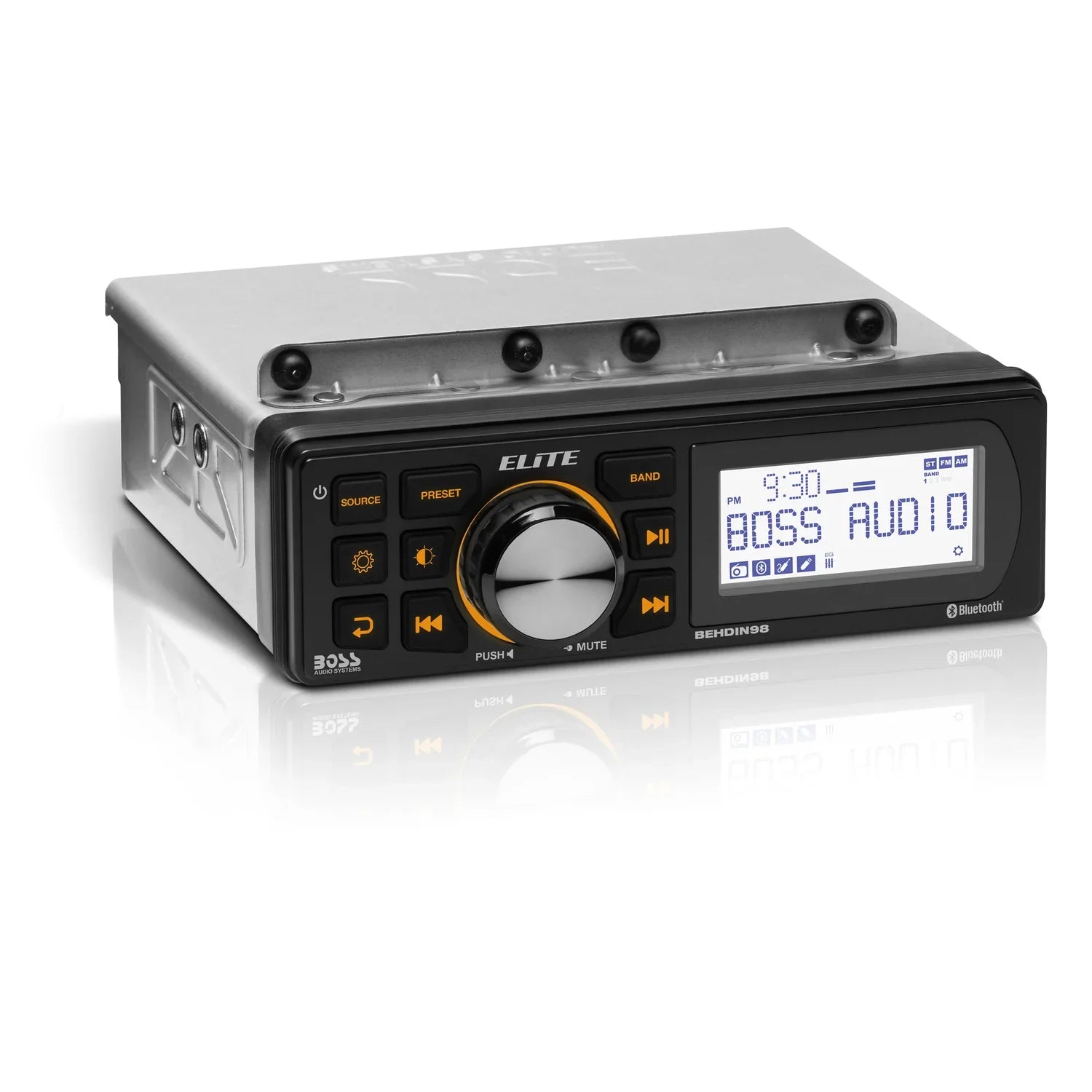

Elite BEHDIN98 Harley Davidson Amplified Bluetooth Receiver – Directly Fits 1998-2013 Electra Glide & Road Glide, 3” Monochrome LCD, IPX6 Weatherproof Panel & IPX4 Chassis
Elite BEHDIN98 Harley Davidson Amplified Bluetooth Receiver – Directly Fits 1998-2013 Electra Glide & Road Glide, 3” Monochrome LCD, IPX6 Weatherproof Panel & IPX4 Chassis
Couldn't load pickup availability
• Bluetooth® Audio
• 3" Monochrome LCD Display
• AM/FM Receiver with 18 FM/12 AM Presets
• Plug and Play for Easy Installation
• Switchable US & EU Tuner Frequencies
• Zero Current Draw Memory (Retains memory if power is disconnected)
• Selectable Amber or White Button Illumination
• Three Variable Brightness Display and Button Modes
• Retains Factory Handlebar Audio Controls*
• IPX6-Rated Front Panel (Weather-Resistant / Dustproof) / IPX4-Rated Chassis
• Conformal Coated PCB
• UV Protected Front Panel
• ZAM® Coated Corrosion-Resistant Steel Chassis
• Amplifier Class A/B (2 Ohm Stable)
• Max Power: 72W x 4 @ 2 Ohms / 48W x 4 @ 4 Ohms
• Operation Voltage: 9.6V – 14.4V DC

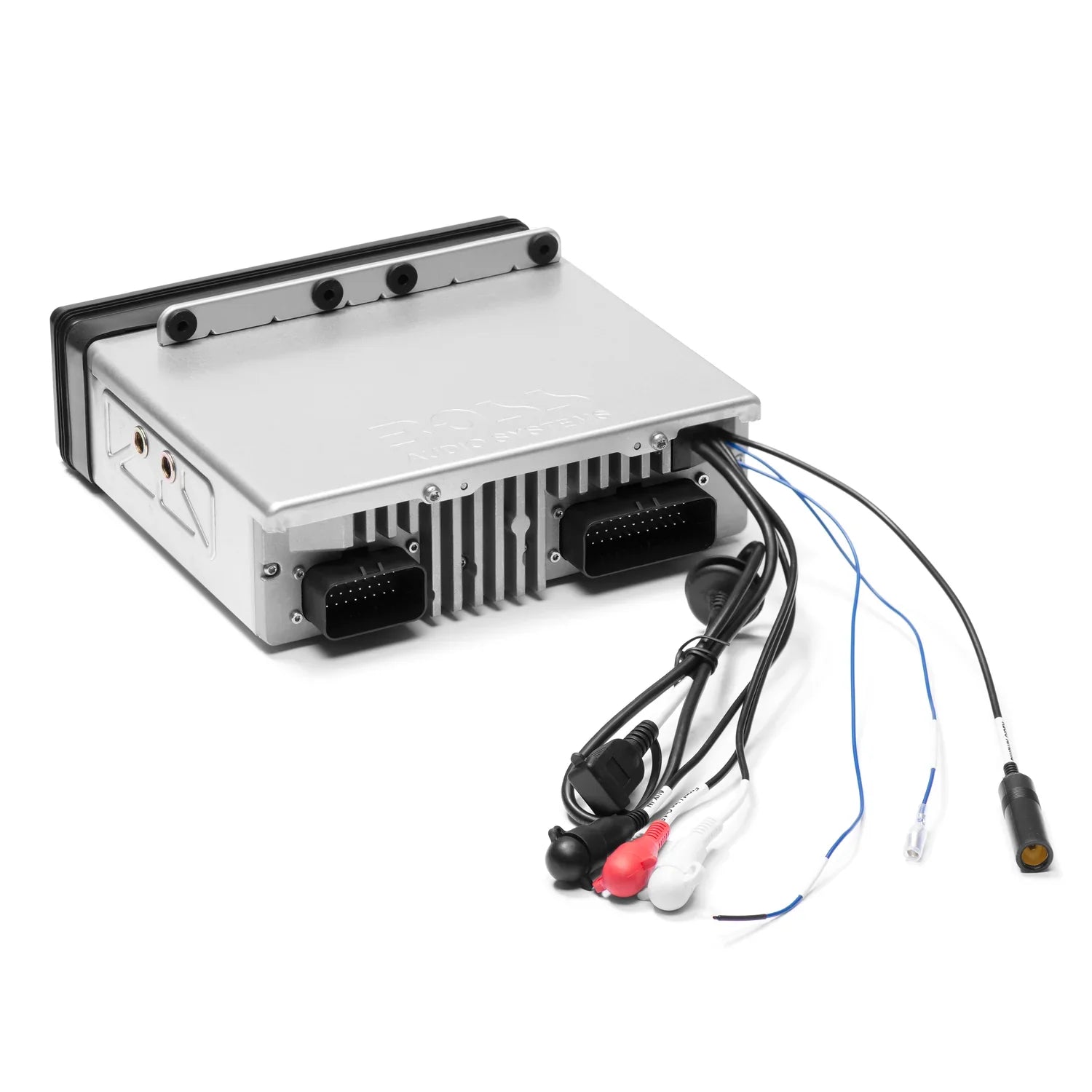

• INPUTS & OUTPUTS:
• Aux In (3.5mm)
• Rear USB Port: Media & 1.5A Charging
• Front L/R Pre-Amp Outputs (2V)
• Factory OEM Rear Speaker Output, True Plug and Play**
• COMPATIBILITY: Direct fit for 1998-2013 Harley-Davidson®** Electra Glide®, Street Glide® and Road Glide® Models
• * Requires factory wiring harness and connectors to retain functionality.
• **Not compatible with factory amplified systems, intercom, CB, rear volume controls, 1998-2005 Ultra rear speakers, and factory equipped satellite radio systems.
| Inputs & Outputs | USB Port | Rear Cable |
| Aux-In | Rear Cable | |
| Pre-Amp Outputs | Front | |
| Performance & Controls | Total Power Output | 288 Watts ( Watts x Ch) |
| General | Screen Size | 3 " |
| Switchable Tuner Frequencies | USA | |
| Tuner Preset | 18 FM / AM | |
| Selectable Preset EQ | ✔ | |
| Clock Display | ✔ | |
| Chassis Type | HD-OEM | |

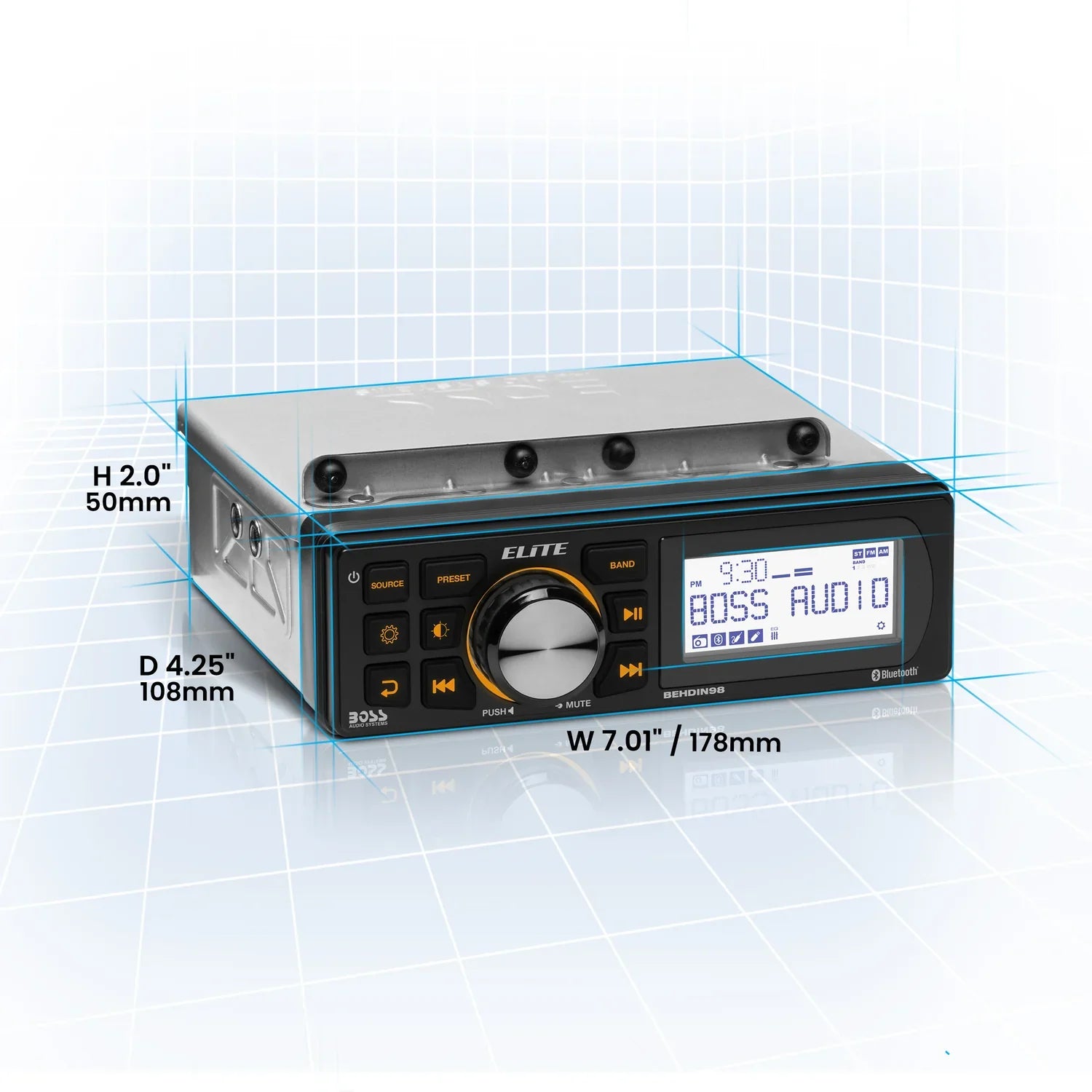

| Mounting Measurement | Width | 8.36 " |
| Height | 3.26 " | |
| Depth | 8.04 " | |
| Extra Features | IPX6-Rated Front Panel (Weather-Resistant / Dustproof ) / IPX4-Rated Chassis | |
| Direct fit for 1998-2013 Harley-Davidson® Electra Glide®, Street Glide® and Road Glide® Models |
