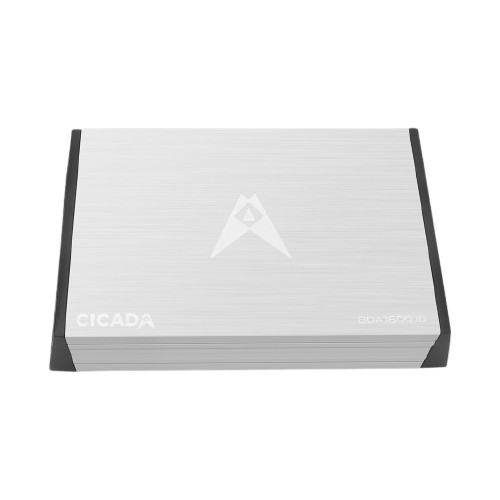

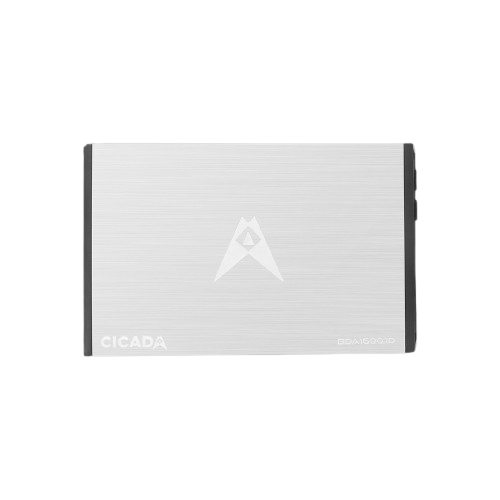

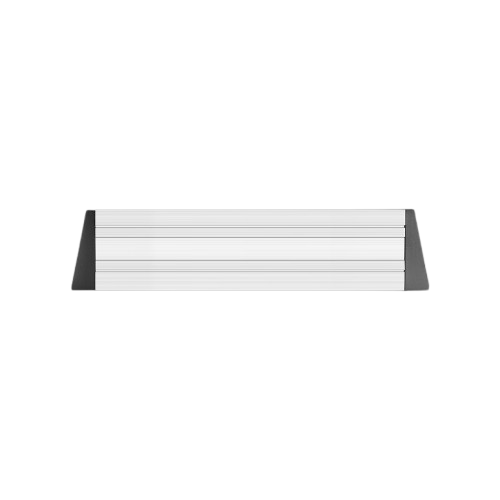

BDA1600.1D Monoblock Power Amplifier – 1600W RMS

The BDA1600.1D Monoblock Amplifier is engineered for serious bass performance and high-efficiency power delivery. Producing up to 1600 watts RMS, this amplifier is built to drive demanding subwoofer systems with clean, controlled output and exceptional reliability.

Power & Electrical Specifications

• Operating Voltage: 9V – 16V
• Current Draw (Music): 70A
• Maximum Current Draw: 140A
• Recommended Fuse: 100A

RMS Power Output

• 4Ω @ 12.5V: 670W RMS
• 4Ω @ 14.4V: 950W RMS
• 2Ω @ 12.5V: 1250W RMS
• 2Ω @ 14.4V: 1600W RMS
• Mono Output: 1600W RMS

Audio Performance

• Frequency Response: 10Hz – 20kHz (±3dB)
• Total Harmonic Distortion (THD): <0.5%
• THD+N (10% Rated Power): 0.1%
• Efficiency: 80%
• Damping Factor: 200
• Signal-to-Noise Ratio (SNR): 86dB

Crossover & Controls

• High-Pass Filter (HPF): 10Hz – 80Hz
• Low-Pass Filter (LPF): 80Hz – 20kHz
• Crossover Slope: 12dB/Octave
• Gain Range: 0.2V – 12V
• Turn-On Modes: REM / DC

Dimensions

• 9.1″ x 5.37″ x 2.1″
• 232mm x 136.4mm x 54mm

Compact yet powerful, the BDA1600.1D delivers high-current performance, efficient operation, and precise control—making it an ideal solution for high-output subwoofer applications that demand deep, impactful bass.
